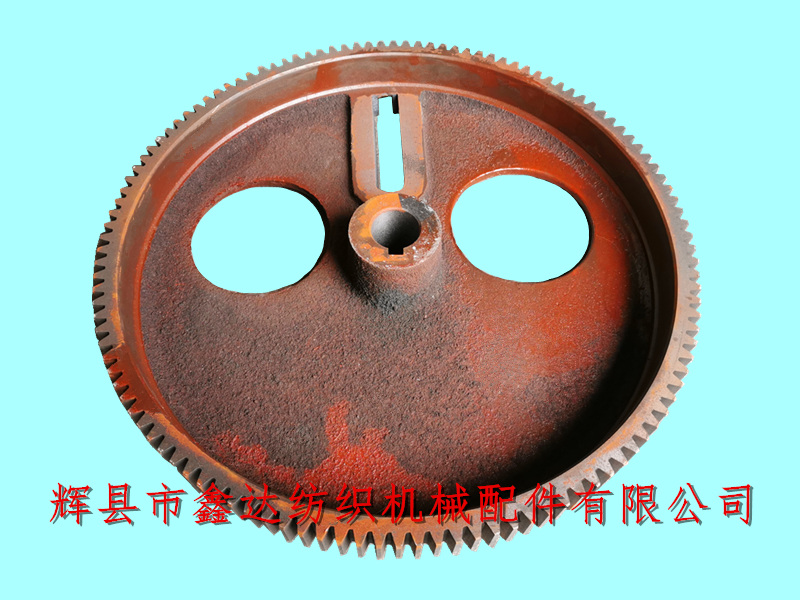

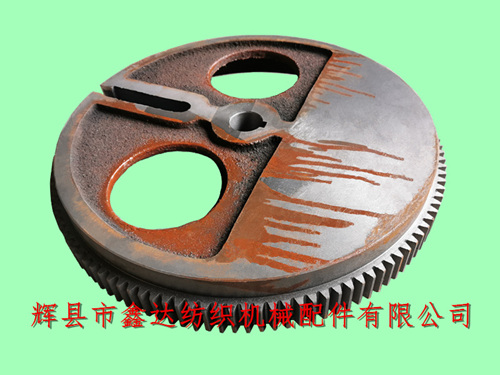

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides textile accessories, weaving auxiliary machinery, Cloth Plaiting Machine Gear(120 Teeth), Handan code cloth machine equipment main components, textile auxiliary equipment parts, 120 tooth code cloth machine gear with an outer diameter of 49 cm and a thickness of 8 cm; The diameter of the inner hole of the textile gear is 40mm, the outer diameter is 7.5cm, the modulus is M4, and the weight of a single gear is about 24.9kg.
Cloth stacking machines, also known as "cloth stacking machine", "cloth folding machine", "cloth inspection machine", are mainly used to stack the finished woven cloth with a certain code length, which is convenient to measure and calculate the meter (length) of the finished cloth. The commonly used simple cloth stacking machines rely on the forming cam to move back and forth. On this basis, adding a chain can improve the accuracy of the movement range of the scraper, After adding cloth coding, the neatly stacked cloth will be thrown out from the chopping board of the machine automatically. This kind of cloth coding machine is called full-automatic cloth coding machine.

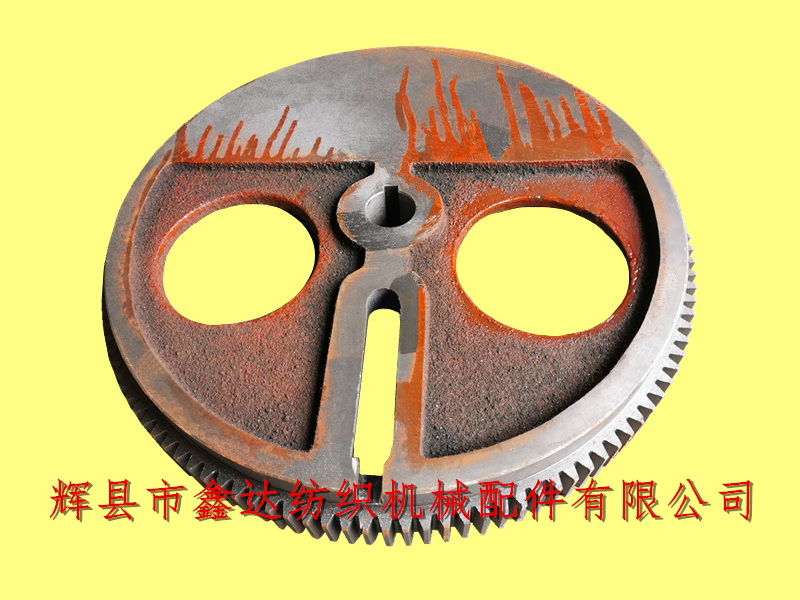

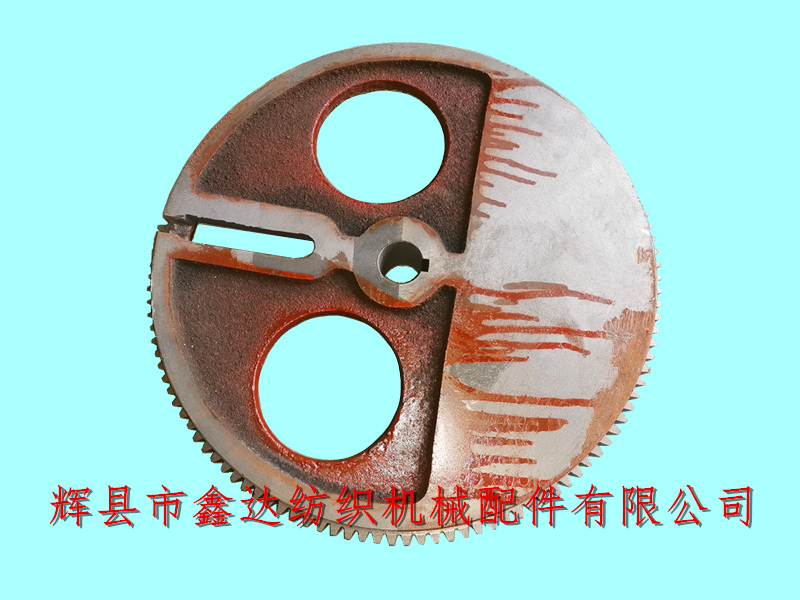

The above figure is the back view of the 120 tooth code loom gear. The keyway width is 10mm and the material is HT15-33 pig iron. The teeth of the gear are formed by tooth milling process. The weaving gear accessories of textile accessories are mainly driven on the equipment. The gear requires high concentricity when rotating, otherwise it is easy to damage other dual parts.
Textile accessories, code cloth machine gear, textile gear, the minimum order quantity of weaving gear is 1 pcs, and the default delivery time is 4-7 working days after receipt. If you need to purchase 120 teeth wheel of code cloth machine, support foot of code cloth machine, 52 tooth umbrella gear of cloth stacker and other accessories, please contact Mr. Yang of our company for details!
