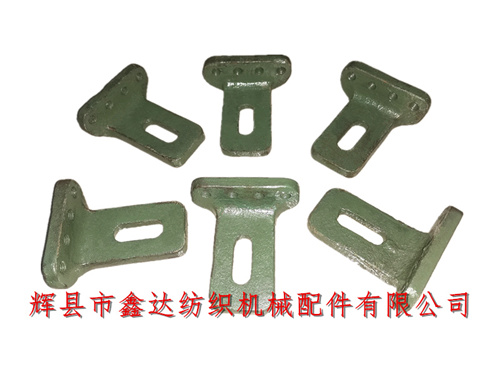

Henan Xinda Textile Accessories Co., Ltd. provides wholesale of the broken weft stop accessories of 1511 and 1515 looms. The broken weft stop is also known as the "chicken pecking rice" device. The 7227 loom foot is an accessory used to fix the pull and swing rod 7200-6 or 7200-7. The overall width of the broken weft stop accessories 7227 is 75.5mm, the height is 81mm, the thickness of the screw hole is 9mm, and the thickness of the chute surface is 9mm.
The four screw holes of the supporting foot of the weft break stop fitting 7227 of the textile machine are used to install the pin shaft 7221, with the size of M8. The supporting foot is fixed on the reed foot of the loom (shuttle shed side), which is suitable for 1511, 1515, GA615 and other models of old shuttle looms.
The above figure is the back view of the swing rod support foot 7227. The width of the chute is 12.3mm and the length of the chute is 39mm. The back is horizontally attached to the front plane of the reed foot. Each loom is equipped with a set of weft break stop device. The usage of the swing rod support foot 7227 is one. The dimensions of the casting parts of the weft break stop of the textile machine are unified and can be borrowed from each other.
The package of weft break stop accessories-7227 is 10 in each string, weighing about 2.8kg.Pull Swing Rod,Shuttle Loom Parts,Loom Weft Break Stop, It can be divided into 280mm, 350mm, 380mm, 450mm, 500mm, 550mm, 600mm and other specifications according to the length of three sleeves of weft break stop.
Xinda Textile accessories specializes in providing wholesale businesses such as old-fashioned weft break stop, mechanical weft break self-stop device, loom support foot, textile swing rod and loom accessories. The products have a complete variety and stable and reliable quality. If you need to purchase, please contact Mr. Yang of our company for details.
