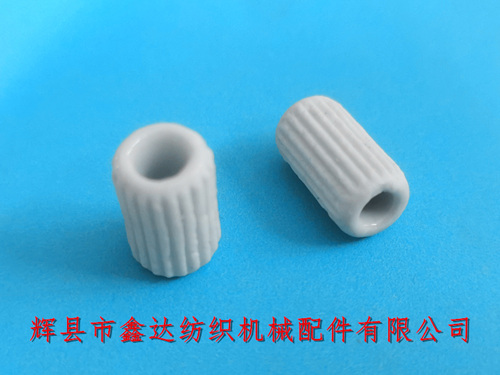

Huixian Xinda Textile Machinery Parts Co., Ltd. provides Textile Porcelain Parts Loom Shuttle Ceramic Eyes 9*16, Guide yarn porcelain eye, ceramic eyes for textile ceramic parts, weaving machines Loom Parts, and ceramic equipment shuttles. White ceramic eyes are used for ordinary cotton machine shuttles and woolen wood shuttles, which belong to textile ceramic products. The size of the shuttle ceramic eyes is: the outer ring diameter is 9.2mm, the inner hole diameter is 4mm, and the total length is 16mm. According to this specification, it is marked as 9 * 16. The outer surface of the ceramic eyes has grooves in the shape of scratches, mainly used to tighten the shuttle eyes. The inner cavity and both sides are coated with porcelain glaze for smooth yarn passage.
Textile porcelain pieces - Ceramic eyelets are made by firing in kilns, and this specification of ceramic eyelets is mainly used for weaving machine shuttles with single ceramic eyelets. Ceramic eyes (Guide Yarn Porcelain Eye) are textile ceramic products and also ceramic equipment for weaving machines. The weaving shuttle uses 9 * 16 ceramic eyes with good internal smoothness.
Ceramic accessories for weaving machines are widely used in other applications, usually as components for guiding yarns (yarn, metal wire, fishing net wire, carbon fiber).
The smooth edge of the porcelain eye in the weaving machine material is designed according to the requirements of the yarn guide angle. When the yarn enters the porcelain eye hole, it is usually in the direction of an acute or right angle, and the side leading out is also the same.
The individual weight of textile ceramic parts - ceramic eyes is approximately 1.7 grams, packaged in transparent self sealing bags, with a quantity of 300 pieces per bag; If you need to purchase textile ceramic eyes, shuttle ceramic parts, textile ceramics, shuttle components, weaving machine Guide Yarn Porcelain Eye, or other parameters and dimensions of ceramic eyes, please contact our company's Manager Yang.
