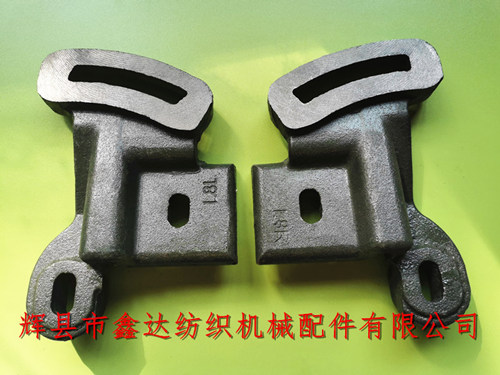

The middle gear of L8 textile accessories is divided into left hand and right hand. The material is HT15-33. The screw core of loom intermediate gear is installed on the wall panel (P2 or 4302). The width of traditional loom L8 is 134mm, the total length is 192mm, the length of side ear is 70mm and the thickness is 15.5mm. The weight of single L8 textile accessory is 0.74kg.
The position of loom intermediate wheel core support leg L8: the distance between the upper edge of the core and the middle of the pin hole of the taker in roller shall be 133.3 mm, so that the intermediate wheel L11 can mesh properly with the gear L13 of the licking roller.
The distance between the lower edge of roller carrier L14 and L15 and the top of front rail P4 is 133.4 mm, which is determined by considering the coiling capacity of cotton cloth (0-160 m) and the assembly position of spring L72 of cloth winding support rod.
When installing the intermediate gear screw core bracket L8, there should be a 3mm gap between the anti reversing hook L9 and the cloth roller support rod support leg L15, which can be adjusted by moving the screw core. It is suitable for all kinds of old looms such as 1511, 1515, GA615 and so on.
Fan foot, textile accessories, textile gear, L8 textile accessories, intermediate gear with fan-shaped feet and other coiling accessories procurement can contact our company, we in line with the "integrity management, pragmatic and enterprising" business philosophy, dedicated to your service!
