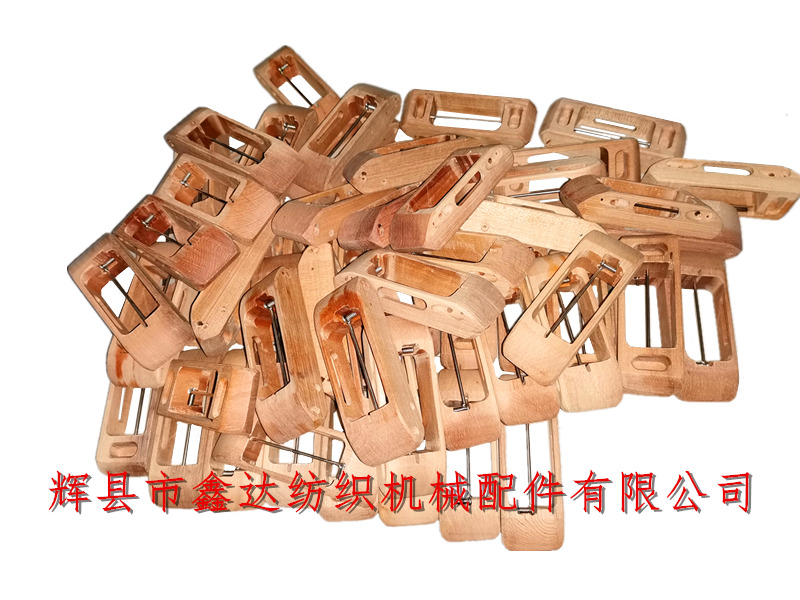

Huixian Xinda Textile machinery accessories provide customized webbing machine shuttle, 11 cm webbing flat shuttle textile wood products processing, Overall dimensions and parameters of the shuttle shell of the large shuttle: the total length is 111mm, the outer width is 33mm, and the inner cavity length and inner width of the shuttle of the flat shuttle webbing machine are 52mm and 26mm. 11CM Ribbon Shuttle For Webbing Machine, The height of the back of the shuttle is 22mm and the height of the front is 20mm. It belongs to wood products in textile equipment. When the shuttle is customized, it is necessary to provide shuttle samples and supporting spools (winding tubes).
Textile equipment can be divided into: loom, ribbon loom, circular loom, warp knitting machine, glass fiber machine, silk loom, hemp loom, etc. wood shuttle accounts for a large proportion of special quality. Because wood shuttle does not need to open mold like nylon shuttle in the process of customization, there are hundreds of types after random design and processing.

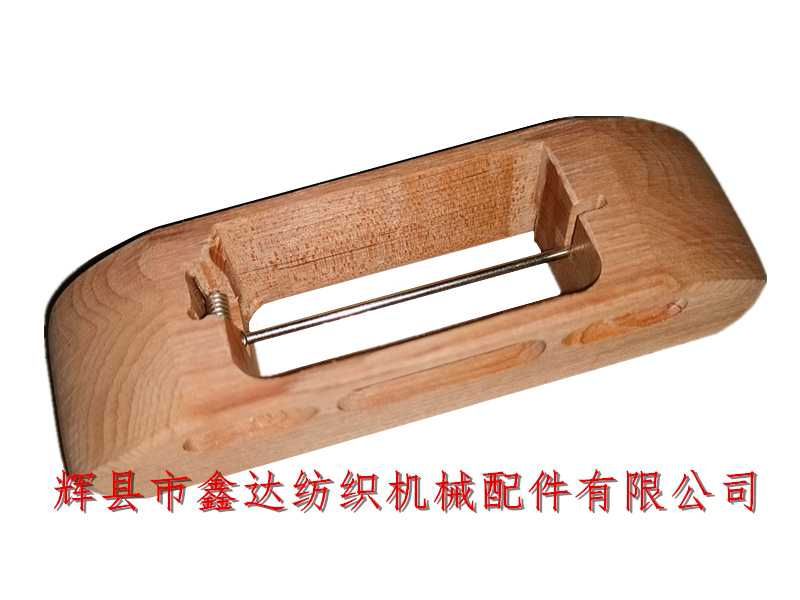

Shuttle belt looms are generally transformed into flat shuttle Belts Based on 1511 and 1515 looms. The number of wooden shuttles used by each textile equipment varies according to the door width. Many kinds of finished fabrics such as collar label, hat belt, cylindrical cloth and streamer are common. The overall shape of the shuttle of shuttle belt loom is smooth, and the yarn guide bow is installed in the front, as shown in the following figure:

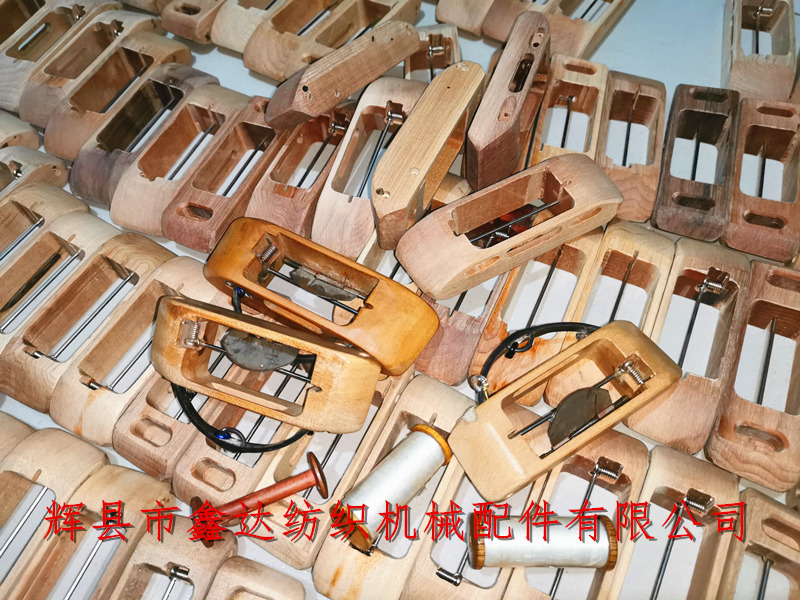

The pressing plate in the figure above is mainly used to prevent the weft yarn from falling off on the spool and ensure the tension when the weft yarn is continuously drawn out during the rotation of the spool. Our company adheres to the customization of webbing machine shuttle, 1515 shuttle and flat shuttle, and the deep processing of textile wood products for many years. We have extensive cooperation with many domestic textile machinery factories and research units. Packaging of 1515 loom shuttles: Cartons, 100 shuttles per box. The minimum order quantity of flat loom shuttles is 100 shuttles of the same specification, and the production cycle is about 35-40 days.

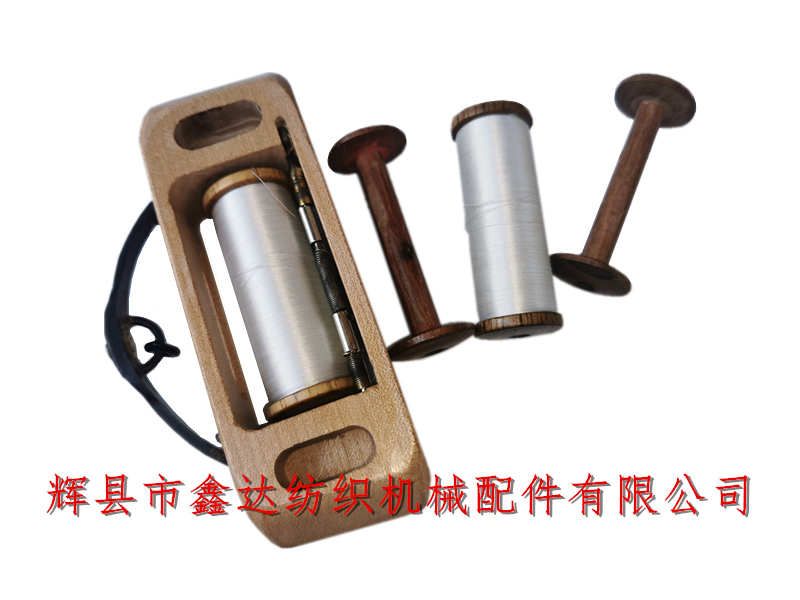

The above figure shows the finished product of the large webbing shuttle after assembly, as well as the empty spool and full spool. Ribbon Shuttle,Webbing Machine Shuttle, Our company provides all kinds of customized processing services for textile wood shuttles. There are a wide range of customized wood shuttles. Welcome local Ribbon enterprises and ribbon manufacturers to contact Mr. Yang of our company to negotiate ribbon machine shuttle, shuttle, shuttle customization and order textile wood products!
