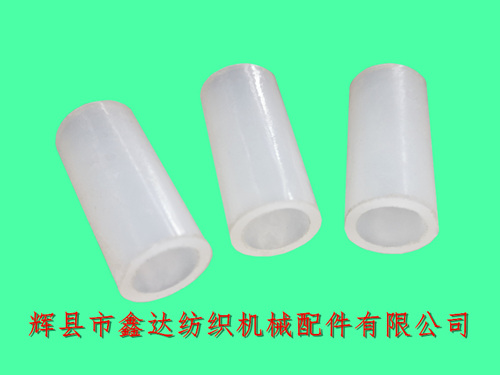

Huixian Xinda Textile Machinery Parts Co., Ltd. provides shuttle textile equipment -7207 inner sleeve nylon bushing/point pecking type weft probing component/loom cover, GA615-7200 series point pecking type weft probing component, also known as "chicken pecking rice" or loom weft stopping device, which is a mechanical device used for checking weft yarns. The 7207 nylon sleeve is installed in the inner chambers of both ends of the warp stop sleeve and connected to the head shaft of the rocker. The outer diameter of this loom sleeve is 11mm, the inner hole diameter is 8mm, and the total length of the cylindrical shape is 24mm.
Each weaving machine is equipped with one set of warp stop devices, each with one triple sleeve. Each triple sleeve uses two 7207 inner sleeve nylon bushings (nylon sleeves). Textile machine bushings, textile equipment weft probing components, 1511 loom sleeves, nylon sleeves, textile equipment, inner sleeve bushings, loom equipment accessories (including plastic parts, nylon parts, small steel parts, and cast iron parts).
The material of the 7207 nylon sleeve is reinforced nylon, which has good wear resistance and a smooth and delicate surface. In addition, other nylon sleeves used for the weft probe components include: 7205 outer sleeve nylon bushing, 7212 nose shaft rocker arm nylon bushing, 7230 swing rod bushing, etc.
The warp stop device can be used in GA611, 1511 GA615、 The 1515 and other models of shuttle looms borrow from each other. Different widths of shuttle looms use different lengths of three sleeves, while other accessories that do not involve length are the same.
