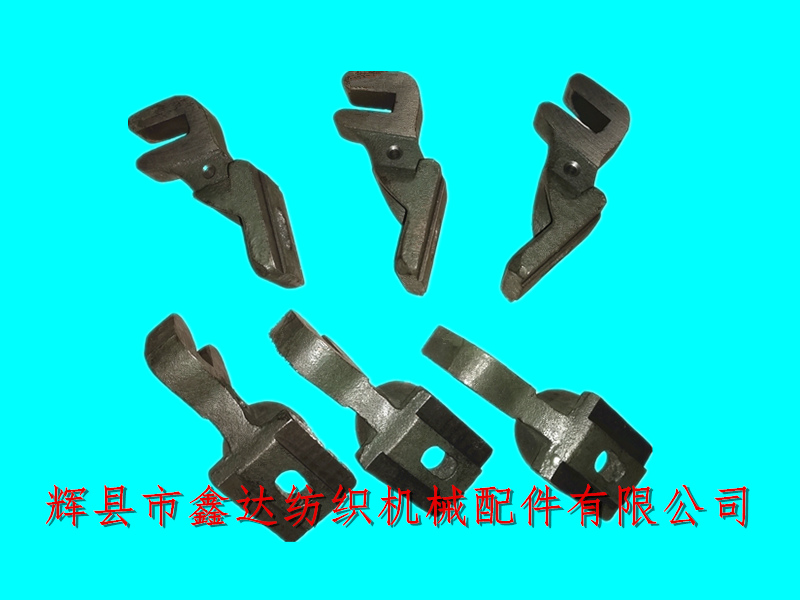

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides GA615 loom accessories 2102 Bracket For Box Cover, shuttle box cover plate supporting feet (cast iron) all year round. 2101 and 2102 are the assembly of shuttle box cover plate supporting feet, which correspond to 1511/1515 looms. The total length of GA615 accessories -2102 loom supporting feet is 11cm, the width of the base is 40.5mm, there is a raised chute below, the thickness is 1.7mm, and the total thickness of 2102 cover plate supporting foot base is 12mm; The thickness of the front fork is 16mm, the inner width is 1cm, and the depth is 30mm.

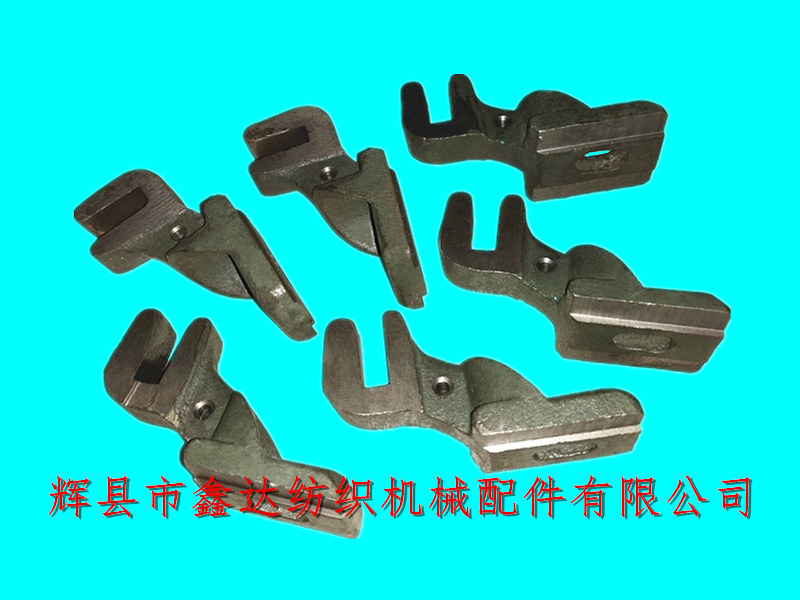

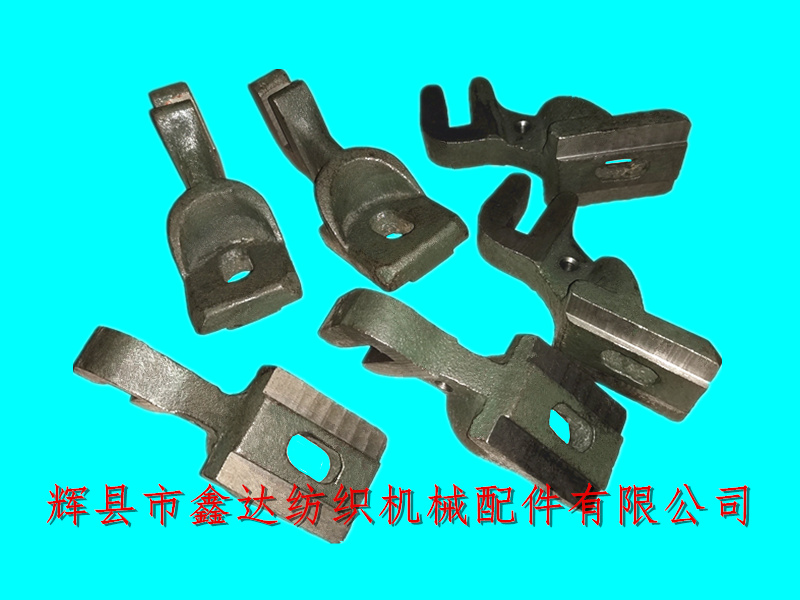

The above figure is the side view of the loom shuttle box cover plate bracket 2102. The diameter of the round hole in the figure is 5 mm, and the size of the screw hole fixing the bottom is: the inner length is 20mm, the inner width is 11mm, and the width of the middle bulge is 20mm (the position of the screw hole is bulged, see the following figure).

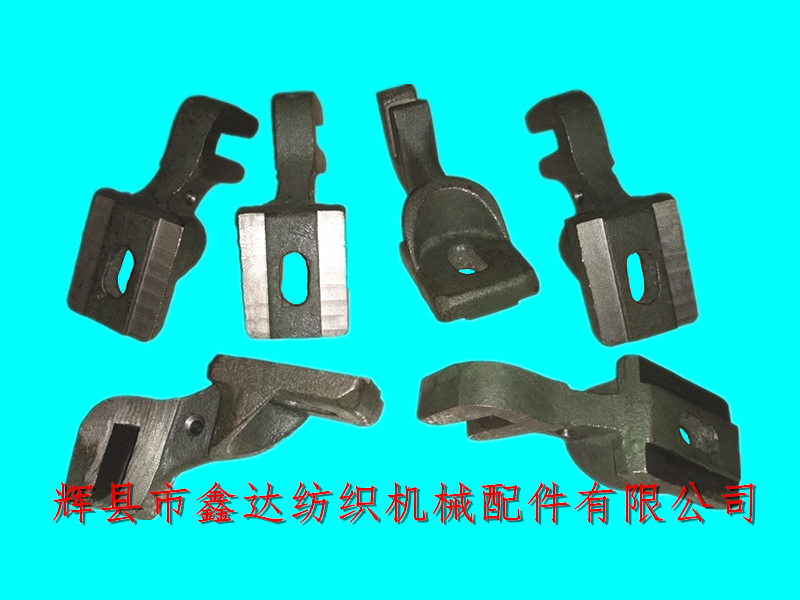

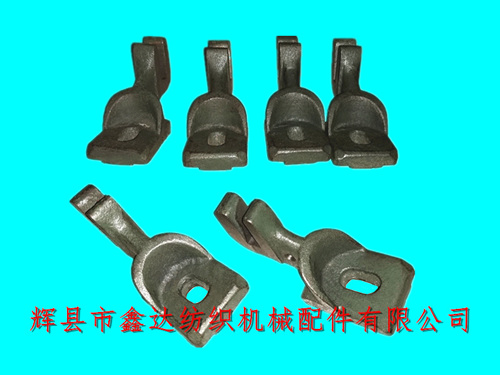

The single weight of GA615 shuttle box cover plate bracket 2102 is about 0.2kg, without outer packaging, and each string has 25 pcs, which is a cast iron product of loom; GA615-2102 can also be applied to the modification of 1511 and 1515 looms. They are shuttle box components around the automatic shuttle changing device, and each loom uses one pcs.
They are installed upside down and hung under 2101 supporting feet. On GA615 looms, they are connected and combined with 3101 (shuttle shed side reed foot). Our company also provides GA615 shuttle box cover plate, supporting feet of other types of looms, GA615 supporting feet 2102, shuttle loom accessories, GA615 accessories and other products.
If cotton mills and textile manufacturers need to purchase GA615 loom accessories 2102 shuttle box cover bracket (cast iron), please contact Mr. Yang of our company for consultation, and welcome to discuss cooperation matters.
