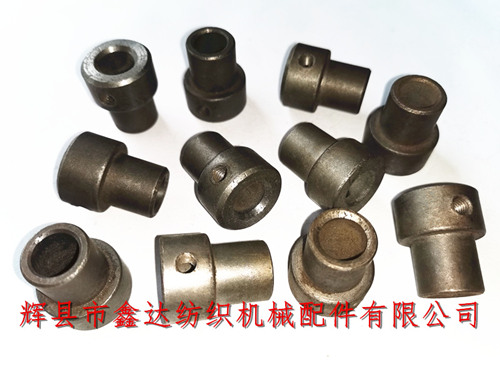

Huixian Xinda Textile machinery accessories provide textile powder metallurgy sleeve O19B swing shaft sleeve, which is made of sintered iron. The inner hole of loom swing shaft sleeve O19B is 12mm, and the outer diameter is 25mm and 18mm respectively. It is connected with the loom swing rod 3600-1 or O00-1. Two pieces are used for each loom. Installation requirements: the clearance between sleeve and swing rod and swing shaft hanging foot O43 is less than 0.4mm, and its support screw The wire is in a straight line and perpendicular to the swing rod strut o37, pointing to the front of the machine.
The height of textile powder metallurgy sleeve O19B is 30.3 mm, and the side fastening bolt hole is M6. It belongs to the P/M accessories of textile machine. When the warp ends are broken, the stop piece falls down on the stop bar iron bar, and the lower part is rolled between the swing bar and the marking bar.
If the swing rod is blocked, the change rod can not continue to swing up and down with the combined rod, so that the rear of the broken stop rod O00-3 rises or descends. When the reed foot swings back, the stop block O14 is pushed backward together, thus pulling the V-shaped rod to shut down.
Textile powder metallurgy sleeve is widely used. The warp breaking and turning off device of 1515 and GA615 looms can be borrowed. This device has simple structure and convenient adjustment. When breaking the warp, the stop can find the broken end according to the stop piece falling after touching the broken warp by swinging the swing bar of the loom back and forth. If you want to buy O19B swing shaft sleeve, textile powder metallurgy accessories, textile sleeve, textile machine sleeve accessories and other products, please contact our company for consultation!
