Huixian Xinda Textile Machinery Parts Co., Ltd. provides a 10 ring copper thorn shaft weaving machine edge support tooth combination component 3900-3/4. The weaving machine edge support component -10 ring copper thorn shaft is divided into left and right sides,10 Rings Temple Needle Ring Unit 3900-3/4 (Copper Associative Component of Needle) belonging to textile equipment products. 3900-3 (right side) is composed of 3915 long thorn shaft, 3916 oblique washer, 3900-1 edge support thorn ring combination component, 3917 middle thorn ring seat, and 3920B thorn ring head combination. 3900-4 is composed of 3922 short thorn ring shaft, 3900-1 edge support thorn ring combination component 3916, 3917, and 3920.

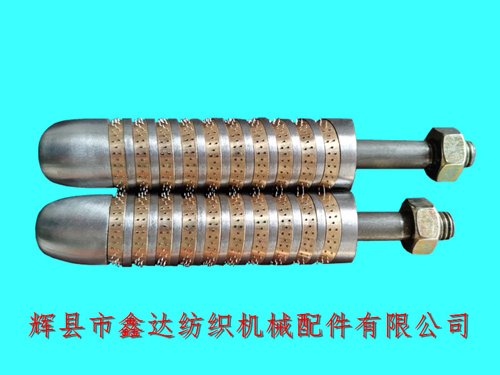

The above figure shows the 10 ring copper thorn shaft of the long and short axes, 3900-3 is the long axis (with a length of 140mm), 3900-4 is the short axis (with a length of 132mm), and the right thread is M103900-1. The edge support thorn ring is in three rows, and the gap between the edge support thorn ring piece and the screw rod of the edge support box (3915X3922) should not exceed 0.2mm. The gap between the edge support box cover head (3910X3914) and the edge support box cover head should be 0.4-0.8mm. The needles of each ring should be flush, and the height difference should not exceed ± 0.2mm.
Textile equipment accessories - The needle of the 10 ring copper needle shaft can be divided into various heights, generally 0.4mm, 0.6mm, 0.8mm. The diameter of the 3919 and 3921 needles is 1mm, and they are made of 60Si2MnA material. The inner ring diameter of the edge support needle ring 3900-1 is 16mm, the outer ring body of 3918 is copper, and the inner ring is nylon 1010. The inner hole diameter of the thorn ring head and inclined washer is 10mm, the outer ring diameter is 24mm, and the outer diameter of the step surface of the thorn ring head is 16mm.
The packaging of copper thorns is paper boxes, with 10 sets per box. The long axis is installed on the right side of the loom, and the short axis is installed on the left side. Each loom uses 1 set for each length.Temple Needle Ring Unit,Copper Associative Component of Needle,Textile Equipment. In addition, the ten ring copper thorns can also be applied to the 1511 loom, but the side support box needs to be modified to the 1515 loom.
Some hardware accessories in the textile accessories category will be classified into the textile equipment category because they are used in a large quantity and belong to the category of vulnerable parts. Purchase 1515 copper spindles, GA615 edge support teeth, textile spindles, 10 ring copper spindles, G611 textile accessories and other products. Please contact our company's Mr. Yang for more information!
