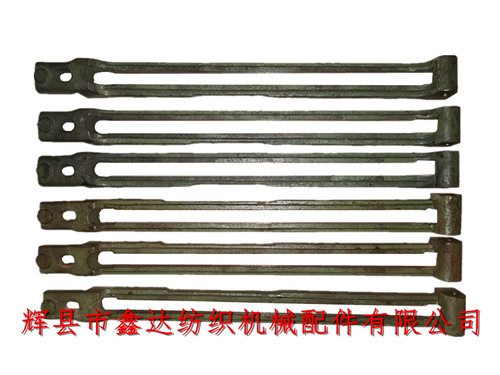

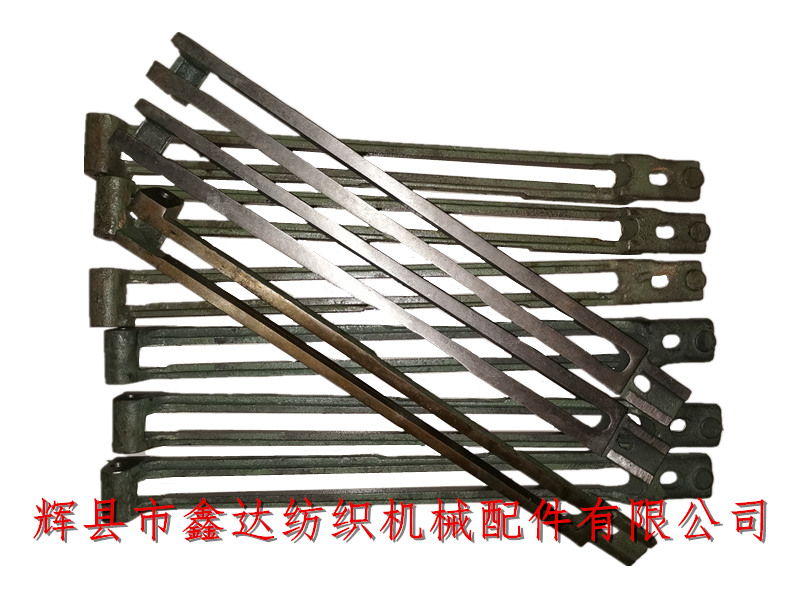

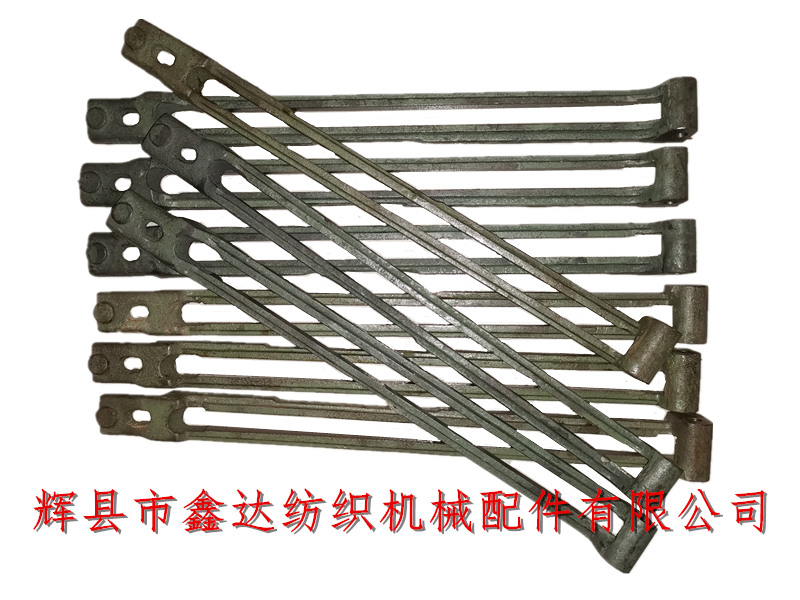

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides loom shuttle box cover plate (shuttle box side) K202 / 3320. Loom shuttle box accessories 1511 use K202 (shuttle box cover plate) to connect with K28 control wood support feet and K201 shuttle box cover plate support feet; GA615 uses 3320 shuttle box cover plate and is connected with loom shuttle box accessories 2101 and 1515k-7512.
Lift the front brake rail K13 (or 3314) so that the lower edge of the front brake rail K13 is 0.8mm lower than the lower plane of K202 when the upper plane is in contact with the adjusting screw of the supporting foot K61. The height of the outer end of the shuttle box cover plate K202 shall not be greater than or less than the shuttle height plus 1.6mm.
The loom shuttle box cover K202 / 3320 is divided into left hand and right hand. Its total length is 45.5cm and 50cm respectively, with a width of 40mm and a height of 35mm. The width of the inner chute is 15mm, the length of K202 chute is 40cm and the side screw hole is M10. If you need to know the picture of the cover plate of the textile shuttle box, the size of the loom shuttle box, the parameters of the loom shed and other information, please contact Mr. Yang of our company.

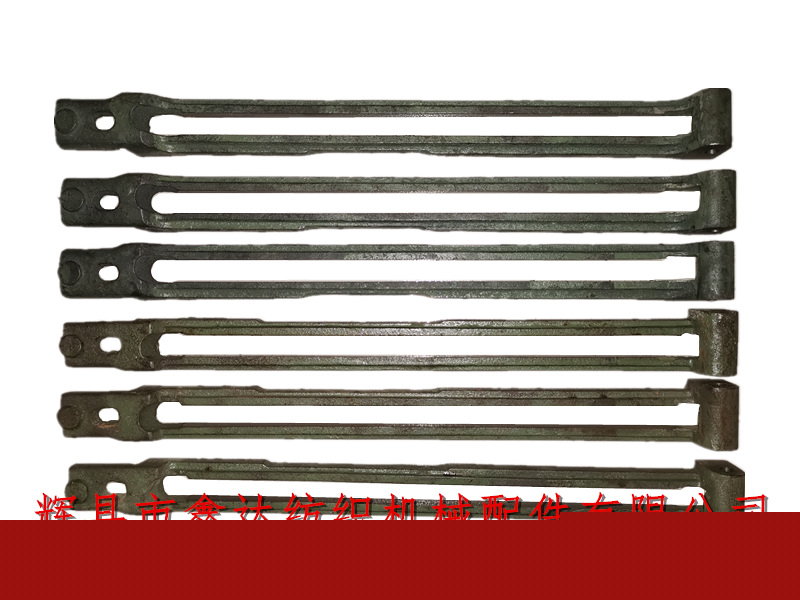

The figure above shows the left hand of K202 shuttle box cover plate (shuttle shed side). Contrary to the schematic diagram of loom parts, the weight of a single accessory is 0.75kg. 1515 uses 3320 (50cm long) to connect with K28 x K201. Each loom uses one piece, which is made of gray iron HT15-33.
