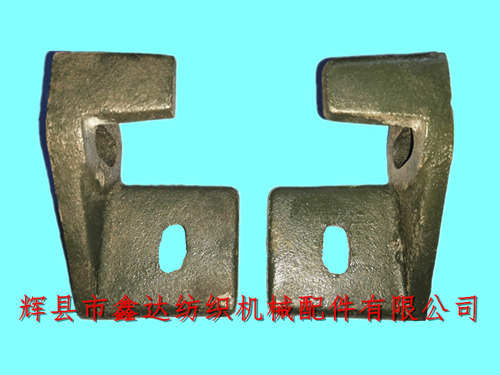

Huixian Xinda Textile machinery accessories provides K21 / 22 loom stop pawl hanging foot accessories, which are mainly used to hang the stop pawl to prevent the reed from separating from the reed clamp. Looms K21 and K22 form left and right hands, and their overall dimensions are the same: length 10.3cm, width 66mm and height 56mm. The bottom surface of the loom hanging foot is fixed on the chest beam and K23 is hung on the side.
The above figure is the bottom view of loom hanging feet K21 and K22. The material is HT15-32. Each 1511 loom uses one piece and 1515 wide loom uses two pieces. It is connected with GA615-0101. The weight of a single supporting foot is about 0.5kg.
K54 leaf spring, textile cast iron supporting foot and loom hanging foot shall be installed at the fixing hole on the bottom surface of K21 and K22 hanging feet of textile accessories. The installation shall be carried out in strict sequence and the bottom surface shall be leveled.
Textile machine spare parts products cover 1511, 1515, GA611, GA615 and other models of old shuttle loom equipment. Many of their accessories can be borrowed from each other. For example, K21 and K22 belong to general accessories, which are suitable for looms with different door sizes.
If textile enterprises in various cities need to purchase accessories,stop pawl foot,loom hanging part,shuttle loom parts, please provide a detailed list of loom accessories. We arrange the source of goods according to the plan and undertake the customization of special loom accessories of foreign export trading companies, including mold opening, gray iron and nodular iron sanding processing. Customers at home and abroad are welcome to contact our company for consultation and cooperation!
