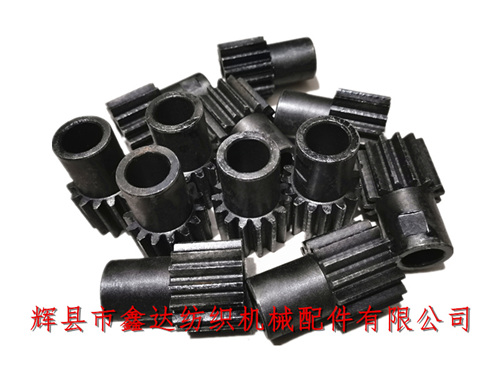

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides loom bridge gear L11 Intermediate Pinion,textile machine spur gear accessories. The number of teeth of coiling bridge gear L11 is 15, which is one of the spur gears in textile gears. The outer diameter of the bottom teeth is 43mm, the module is 2.5, the tooth surface width is 33mm, the total height of spur gear L11 is 66mm, and the inner hole diameter is 20mm. Textile gears are divided into worm gears, helical gears, spur gears, bevel gears, saw gears, Intermediate Pinion, etc.
The bridge gear L11 is installed in the middle hole of the pricking roller gear L10, and the hexagon head bolt on the outside of the hole butts against the plane of L11 to prevent L10 and L11 from being out of sync during rotation. The surface of straight gear L11 of loom is black after simple phosphating treatment, and its material is gray pig iron HT15-33.
The textile bridge gear L11 is an important part of the seven wheel take-up of the loom. The take-up mechanisms of 1515, 1511 and GA615 series Cotton Looms belong to intermittent take-up. According to different transmission gear trains, they can be divided into seven gear intermittent take-up mechanisms, worm gear intermittent take-up mechanisms. The former is widely used, while the latter is used for A-type or K-type multi shuttle looms.
The weight of a single L11 bridge gear is about 0.22kg. The product has no outer packaging. It is generally packed in woven bags, with 100 pieces in each bag. If you need to purchase bridge gears, loom gears, spur gears, and textile gears L11, please contact Mr. Yang of Xinda Textile Accessories Co., Ltd. or ask for more parameter details of the loom bridge gears L11 and textile machine spur gear accessories.
