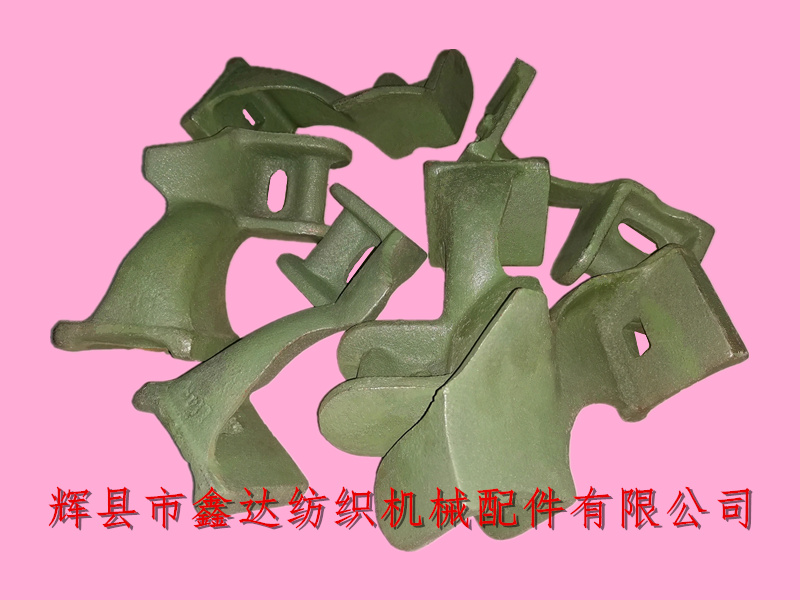

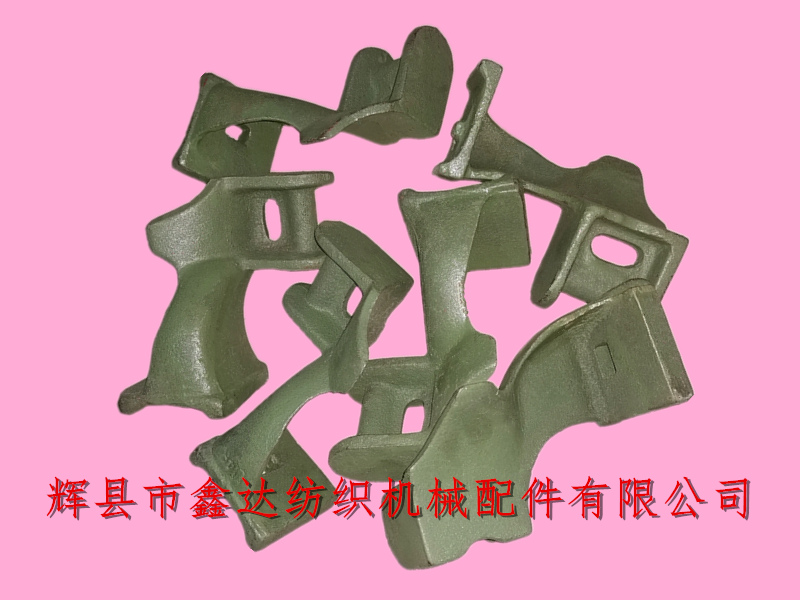

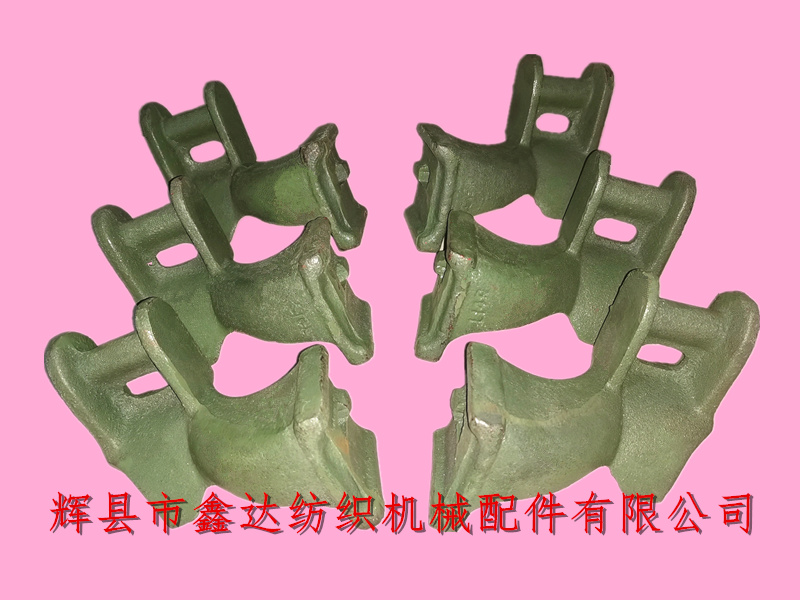

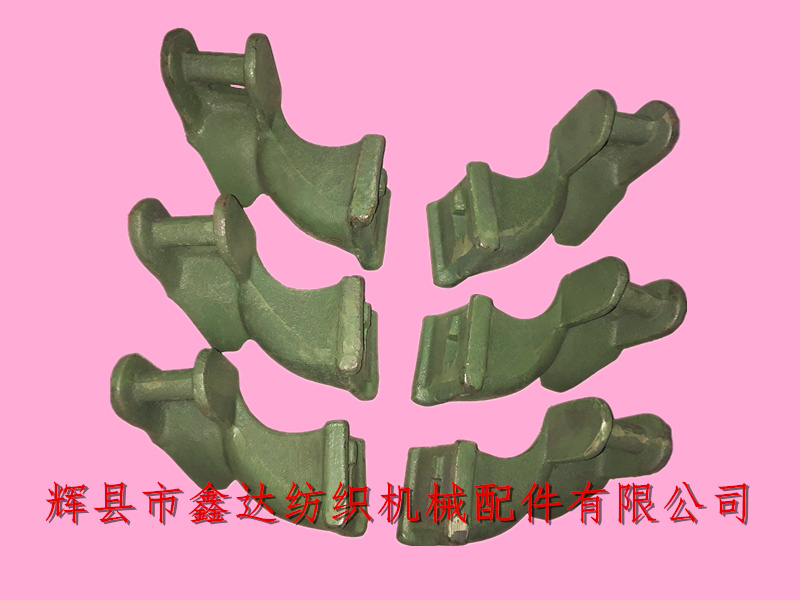

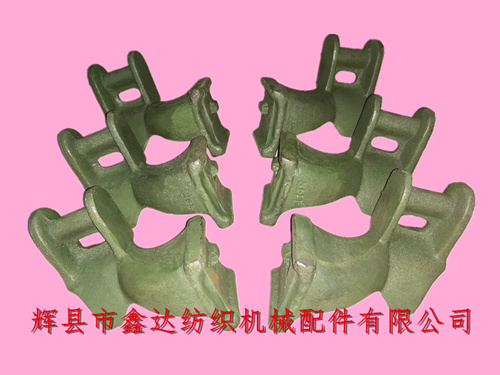

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides general accessories for looms, L14 Cloth Roll Support Rod Foot For Looms, L14 loom supporting feet, winding roller supporting feet and shuttle loom. L14 winding roller supporting rod feet are divided into left mobile phones and right mobile phones. Each loom uses one. The outer width of L14 ear of winding roller supporting feet is 68mm, the inner width is 49mm, the width of L16 clamping groove is 22mm, and the overall length of the winding roller supporting rod feet is 15.8cm, the width is 12.6cm and the height is 13.8cm, The base is 7.6 cm wide and 8 cm long.
The cloth winding device of the traditional old-fashioned loom uses the pricking roller to squeeze the cloth on the winding roller. The weight of the supporting foot L14 of a single loom is 1.7 kg. The supporting rod feet of L14 winding roller used by different types and specifications of looms are the same (except for the special glass fiber improved type). It is installed on the wall panel P1 or 4301 of the loom. Its material is pig iron HT15-33 and its color is green.
Installation instructions: use a fixed gauge to correct the distance between the lower edge of the support rod feet L14 and L15 of the cloth winding roller and the upper edge of the support foot of the front rung P4. The distance between the 1515 and the front cross beam 4307 is 13.4cm, the height of both sides should be the same, and the tolerance is + 0.5mm; They are fixed on the base by M12 * 45 half round head square neck bolts. L14 is located on the side of the hangar and L15 is located on the switch side.
The take-up parts of loom are mostly borrowed from 1511 or G611 type, which are usually the part number of accessories starting with the letter "L", and the corresponding products are common to each other. L14 Cloth Roll Support Rod Foot For Looms, The package of the supporting rod and supporting foot of the winding roller of the loom is 5 in each string, and the minimum order quantity is 5. Generally, the accessories themselves have the code of the part number.
If all weaving manufacturers and textile production enterprises need to purchase 56 inch loom general accessories, Support Rod Foot,Shuttle Loom Parts,Loom Foot,L14, 1511 loom support feet, 1515 winding rollers, GA615 shuttle loom accessories, L14 winding roller support rod feet, please contact Mr. Yang of our company for details. We always adhere to the business philosophy of "honest management, pragmatic and enterprising" and serve the majority of textile users wholeheartedly.
