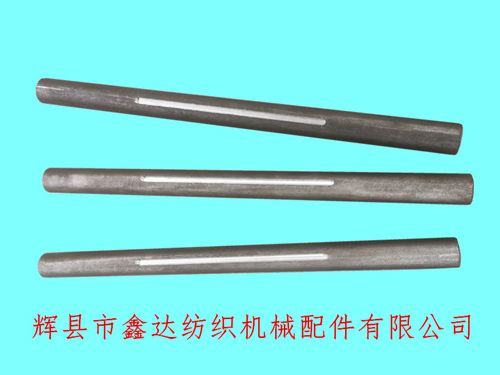

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 1511-B13/1515-3427 loom warp feed shafts for weaving machines. The warp feed shaft used for the 1511 weaving machine has a length of 435mm and a diameter of 28mm; The warp feed shaft used on the 1515 loom is 3427. Depending on the width of the loom door, the length of the warp feed shaft used on the 56 inch loom is 1756mm, the length used on the 59 inch loom is 1829mm, the length used on the 63 inch loom is 1931mm, the length used on the 67 inch loom is 2032mm, and the length used on the 75 inch loom is 2236mm.
1511-B13 warp feed shaft is connected to B00-1 support foot(Inner Let-off spare part). Installation requirements: The warp feed shaft should be perpendicular to the warp feed side shaft B17, and there should be a distance of 37mm between the surfaces of the two shafts. The center distance between the warp feed shaft B13 and the pedal shaft F9 is 184mm (i.e. the distance between the two axis centerlines and the axis side distance is 149mm). The warp feed shaft should not move horizontally by more than 0.4mm, and the allowable difference in the horizontal direction is 0.08/150mm (checked with a level ruler).
The 1515-3427 Inner Let-off Shaft is connected to 3430 (warp feeding shaft hanging foot) and B3 (warp feeding shaft supporting foot). The axis of the warp feeding shaft and the axis of the pedal shaft 3301 are at a horizontal distance of 174mm and a vertical distance of 60mm (the position of the warp feeding shaft is calibrated according to specifications).
The length error range of the warp feed shaft of the weaving machine is ± 1.6mm. If various weaving and cotton factories need to purchase 1511 warp shafts, 1515 warp accessories, GA615 weaving machine accessories and other products, please contact Mr. Yang from our company for consultation.
