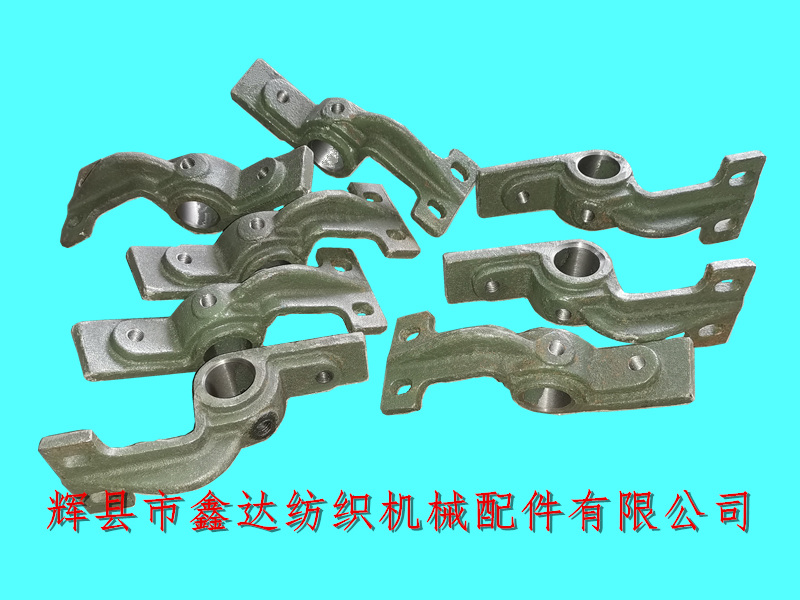

Huixian Xinda Textile Machinery Parts Co., Ltd. has been providing 1515 Reed Clamp Shaft Support Feet 3113 , 1515 type 56 inch/63 inch/75 inch weaving machines with side wing support feet 3113 for the reed clamp shaft. The total length of the support feet of the weaving machine is 168mm, and the diameter of the middle shaft hole is 28mm. The distance between the center of the shaft hole and the plane of the rear fixed reed clamp wood is 35mm, and the usage of each weaving machine is 4 pcs.

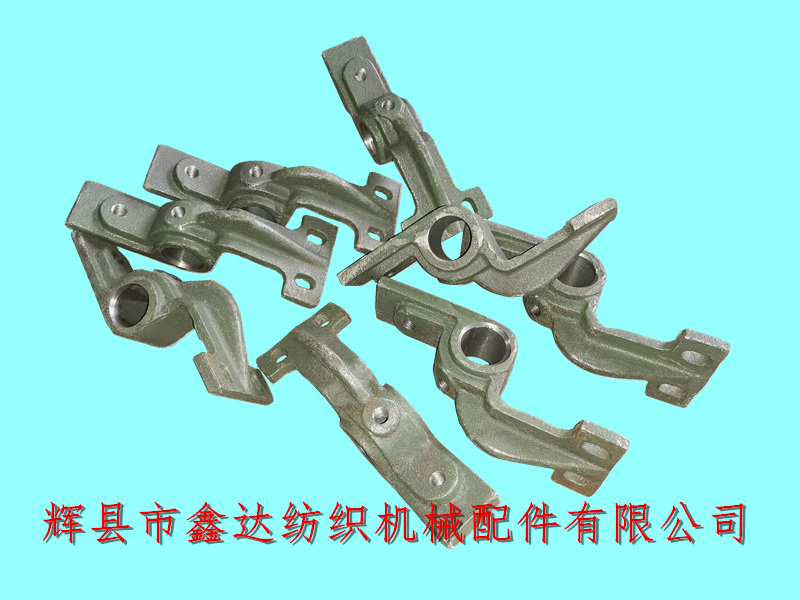

The material of the side wing support feet of the reed clamp shaft is gray pig iron HT15-32. The screw hole on the outer side of the shaft hole is M8, and the screw hole at the tail is used to fix the K27 impact nozzle. The usage of the side wing support feet is somewhat related to the width of the 1515 weaving machine door. The 56 inch reed clamp shaft and the 75 inch reed clamp shaft have the same shape, but with different lengths. They are mainly used to adjust in conjunction with the reed clamp shaft support feet (3108 and 3109) fixed on the reed seat feet.

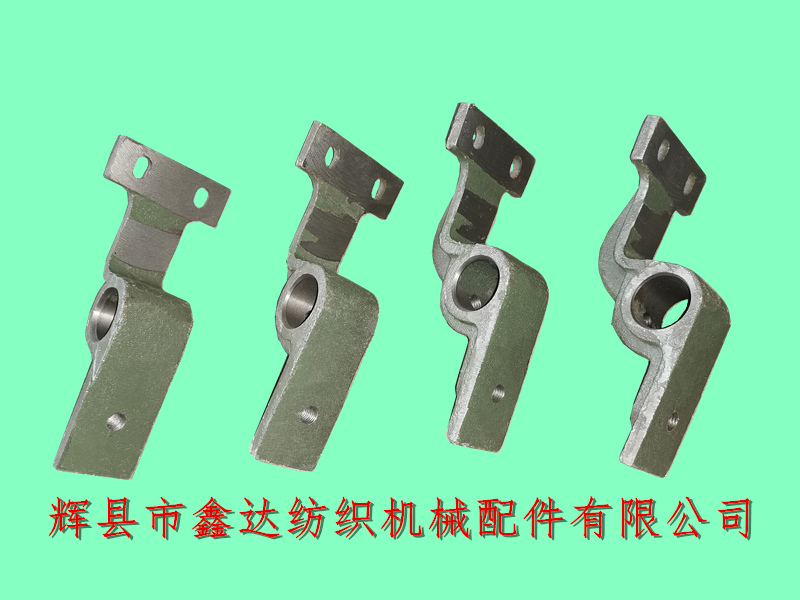

The color of the side wing support feet 3113 of the reed clamp shaft used in the 56 inch/63 inch/75 inch weaving machine is green. The weight of a single 3113 is about 0.9 kilograms, with 10 pieces per bundle. This support foot is not divided into left and right hands, and is installed at the bottom of the reed frame wood. The middle support foot of the reed clamp shaft does not have a tail, and the shaft hole is designed with a cut (expansion joint).
The accessories of the weaving machine's reed clamp shaft include middle support feet, side wing support feet, 3108 reed clamp shaft support feet, 3109 reed clamp shaft support feet, K23 stop stops, etc. If textile factories in various cities need to purchase 1515 weaving machine accessories, 56 reed clamp shafts, 75 inch reed seat feet, shuttle loom support feet and other products, please contact Mr. Yang of our company for negotiation. Welcome to your visit!
