Our company specializes in the supply of 1515 type F11 and GA615 loom 2110 shuttle rotor feeding accessories.GA615 Loom 2110 Shuttle Rotor Parts,The inner hole of shuttle rotor F11 is 32mm,the outer diameter is 76mm.The difference between the loom 2110 shuttle rotor and its inner hole is 36mm,the inner sleeve does not use F12, uses 2109 (inner hole is 20mm, outer diameter is 36mm),and the inner edge of 2110 has steps.

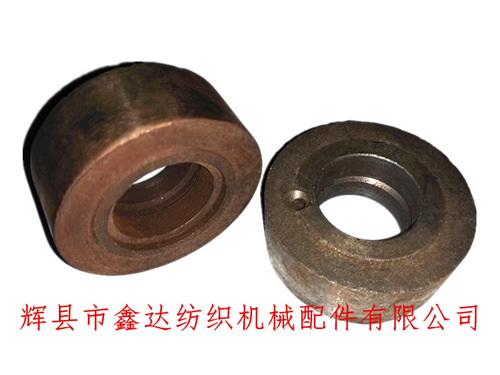

As shown on the left side of the figure above, there are obvious steps on the inner edge of the rotor. The shuttle rotor is made of ht21-40, with a surface of cold and hard treatment. Two pieces are used for each loom, i.e. one on the outer side of the two wall panels of the machine.
The oil hole is located at the outer side of the rotor, and the middle part of the inner hole of the rotor has oil wire (groove). The outer diameter of the shuttle rotor of loom 2110 is less than 3mm, and the outer diameter is less than 5mm.
The clearance between the bearing F12 and the shuttle rotor is less than 0.4mm, the rotation is flexible, and the contact with the shuttle nose F4 is flush. In addition, we also provide all kinds of shuttle parts, such as screw core for shuttle rotor, shuttle plate foot cap, cross gun foot, 2110, shuttle rotor, detailed parameters of shuttle parts and the price of shuttle parts for 2110 shuttle rotor of GA615 loom. Please contact manager Yang.
