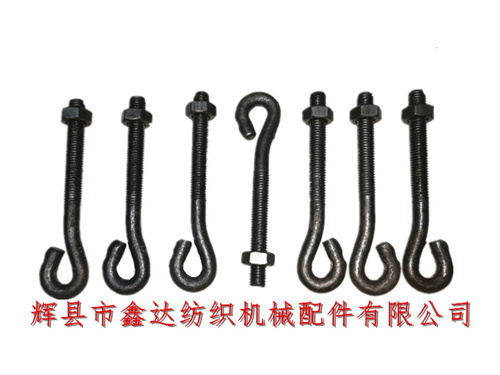

Huixian Xinda Textile machinery accessories provides national shuttle loom accessories. The plain lower heald lifting screw M00-4 is a part of the heald lifting hook under the heald frame. Lower Hook,M00-4,Lower Hook Screw,Shuttle Loom,The size and thickness of the nut is M10 and the material is A3. Each plain shuttle loom uses 2. The loom screw M43 and M109 tight ring are combined. The processing process is to bend and form after twisting. It belongs to textile hardware accessories and is applied to national shuttle looms of 1511, GA615, 1515 and other models.
M00-4 lower heald lifting screw is mainly used to cooperate with M42 and M41 for expansion and contraction, so as to control the horizontal height of heald frame. It is commonly used in plain loom with two heald frames. The total length of m00-4 loom screw is 117mm. The improved m00-4 is no longer an assembly, but is formed by bending the whole body of cold drawn A3 material, simplifying the production process and reducing the manufacturing cost of shuttle loom accessories.
Textile hardware accessories - the screw length of the lower lifting heald screw (m00-4) is 65mm, which is connected with the M42 lifting heald flower basket (lower lifting heald adjusting nut). The inner width of the 9-head is 10.5mm, and the diameter of the rear bend is 8.5mm. It is connected with the M101 pin shaft. The weight of a single lower lifting heald screw is about 0.075kg.
National shuttle loom accessories are generally combined with 1511 and 1515 parts. The weaving surface of ethnic minorities is about 60cm, and the loom wallboard is 1515. Many other loom parts are randomly selected from 1511 and 1515 parts. The composition of each loom is different and uncertain.
Our company provides 1515, 1511, GA611, GA615 and other models of old shuttle loom accessories, including textile hardware products, loom special accessories, lower lifting heald of textile machine, loom screw, upper lifting heald hook, lower lifting heald hook, M45 lifting heald hook and other products.
