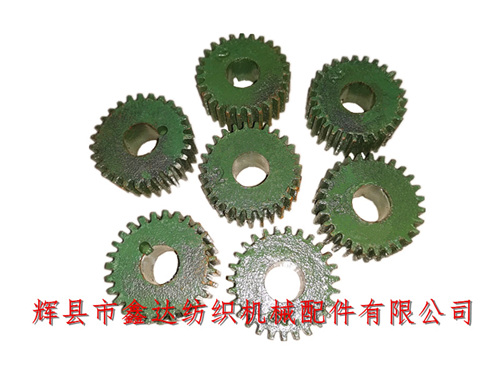

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides the 27 tooth change gear (general) of L33-27T weft density wheel loom. The 27 tooth weft density change gear is made of cast iron HT15-33 by sanding. The overall dimensions are: diameter 51.3mm, inner hole diameter 18mm, spur gear thickness 21.7mm, and there are（ φ 5mm) locating hole, L33 is the general name of weft gear of all looms, 27T refers to the gear with 27 teeth, and t is the abbreviation of tooth tooth.
The weft density gear, weft density wheel and GA615 weft density change gear of 1511 loom are common accessories, which are mainly replaced by the change of fabric density in the production order. The weft density wheel is a component of the seven wheel intermittent coiling device of the loom. When the reed swings from back to front during the swing movement, the reed foot 3244 or K1 drives the coiling iron finger L2 to swing forward through the guide groove foot L1.
The coiling rod L4 is installed on the inner side of the wallboard 4302 or P2, its upper part is equipped with a coiling hook L5 facing the front of the machine, and the lower half of the circular groove is sleeved on the coiling iron finger. When the coiling iron finger swings forward with the reed foot, it pushes the lower part of the coiling rod to swing forward, and the coiling hook on the upper part moves to the rear of the machine, driving the coiling serrated wheel L7 to rotate one tooth, and driving the pricking roller gear L13 to rotate the pricking roller through the standard gear L33, the change gear, the core pinion l00-4, the bridge gear 10 and the bridge pinion L11.
Textile gear, loom spur gear, change gear and weft dense gear belong to shuttle textile accessories. The weight of a single 27 tooth weft dense gear is about 0.2kg, 20 in each string (without packaging). For the weight of other teeth, please consult Mr. Yang of our company. The shape of the old loom gear accessories can be divided into worm gear, umbrella gear, spur gear and saw gear, which are driven at different positions of the loom.
If domestic and foreign textile manufacturers, weaving companies and cotton weaving enterprises need to purchase weft dense wheel, loom gear, change gear and spur gear accessories, please consult our company for details! Our company is a professional supplier of shuttle textile machine accessories. With 22 years of experience in selling loom accessories, we adhere to the business philosophy of "honest management, pragmatic and enterprising" and provide you with services wholeheartedly!
