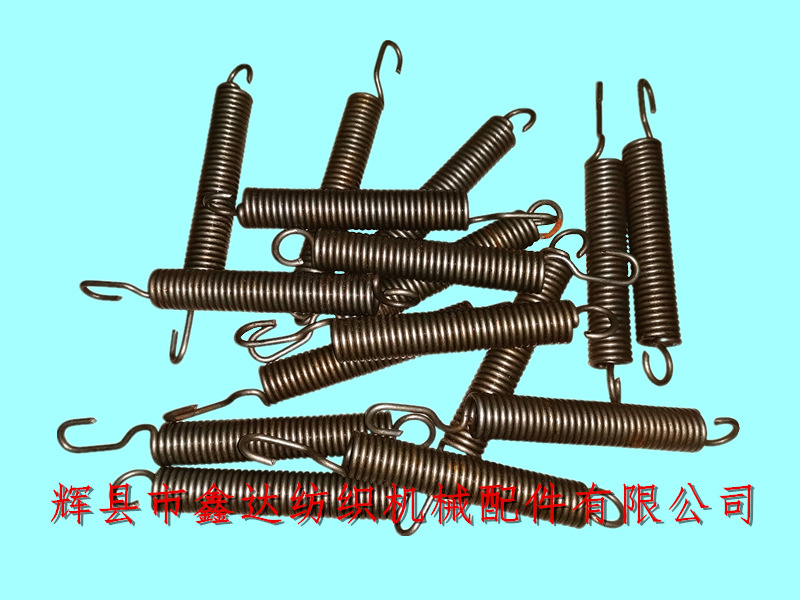

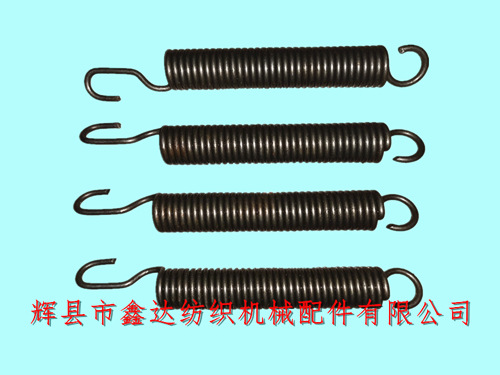

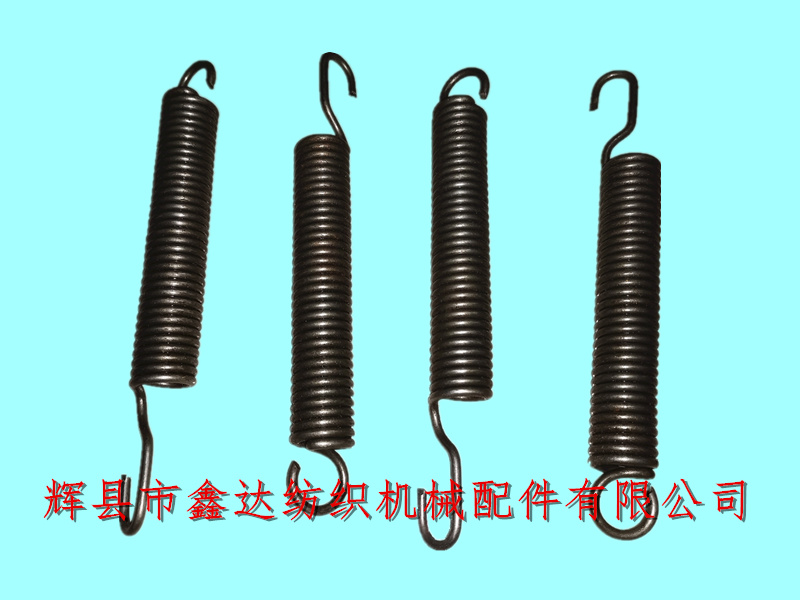

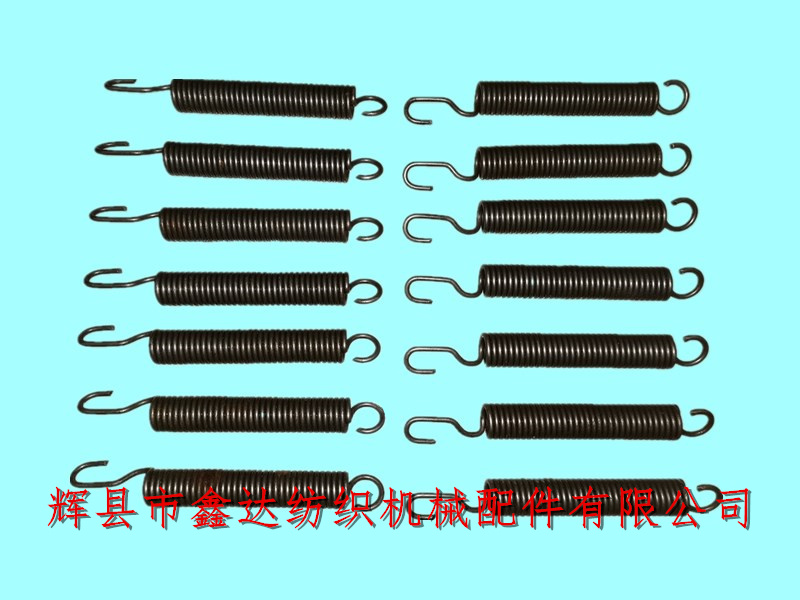

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides 1511/1515/GA615-K57 reed clip spring. Reed Clamp Spring,1515 Loom Parts,GA615 Spring, The shuttle loom reed clip spring K57 is a general-purpose accessory, with a total length of 196mm, a spring body length of 122.5mm and an outer diameter of 22.5MM. It is processed with spring steel wire with a diameter of 3.3mm. The K57 spring body has 34 turns in total, and the inner diameter of the coil at the tail of the tension spring is 16.5mm. It is suitable for 1511, 1515, GA615 and other types of door looms, Each machine uses one piece, which is connected with C32 reed clamp spring hook and K75 reed clamp spring hook.
The tension of the loom with shuttle and the reset power of the reed clamp shaft are provided by K57. The surface of the K57 reed clamp spring used in the loom turns black after phosphating treatment, with good toughness and fatigue resistance. The textile Hardware springs include: tension spring, compression spring, leaf spring, torsion spring, elastic spring (shuttle bottom spring, glass ring tension spring), etc.
There are more than 1000 kinds of shuttle loom accessories, and each product corresponds to several main mechanisms of the loom. Although the shapes used by different door frames are similar, there will be some differences in length, width and hole position. The so-called general accessories refer to the parts that are not affected by the loom door frame and model, which are normally vulnerable parts.

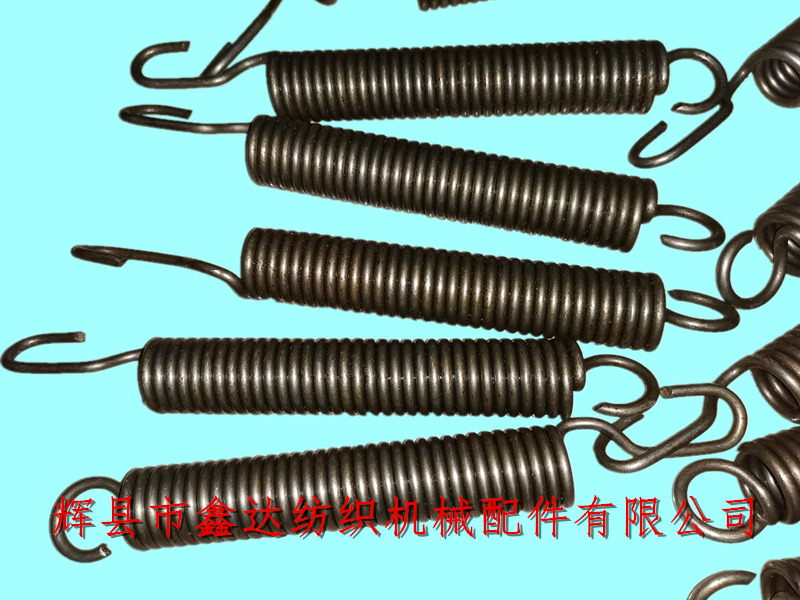

Affected by the shooting distance, the visual effect of the above figure shows that K57 spring is small and the physical spring body is thick. The single weight of K57 reed clip spring of textile hardware accessories is about 0.2kg. The packaging is woven bags, with 200 pieces per bag. When the reed clamp shaft supporting foot K3 or K4 of the loom is damaged, it is necessary to remove the shuttle rod K68, ear sliding plate rotor rod K10, safety spring rod K30 and its core K40, loosen the set screw on the reed clamp spring hook foot K76, place the cloth roller on the cloth surface, remove the reed clamp spring K57 and accessories, and remove the middle supporting foot K26.
Need to buy 1515 loom accessories, 1511 reed clip spring, 1511/1515/GA615-K57 Reed Clamp Spring, GA615 loom spring and other products, or learn about other detailed parameters of K57 reed clip spring, please contact Mr. Yang of our company!
