Huixian Xinda Textile Machinery Parts Co., Ltd. provides 28-110 inch galvanizing tube (Heald Frame Tube,seamless flat tube) for weaving machine integrated frame accessories. The length of the integrated tube of the weaving machine is related to the width of the weaving machine. The commonly used integrated tube specifications include 28 inches, 32 inches, 36 inches, 44 inches, 56 inches, 60 inches, 63 inches, 72 inches, 75 inches, 100 inches, 110 inches, etc. The seamless flat tube (Heald Frame Tube) is the upper and lower beam of the weaving machine integrated frame, used to support and fix the integrated silk and the integrated silk rod (integrated strip) for the formation of the weaving shuttle.
The number of pages in the warp frame of each weaving machine multiplied by 2=the number of warp tubes used. Integrated frame beam, The upper and lower beams of the composite frame,The thickness of the flat tubes used for warp frames is mainly 0.8mm and 1.0mm. Generally, a thickness of 0.8mm is sufficient to meet the requirements for warp frame use on the weaving machine.

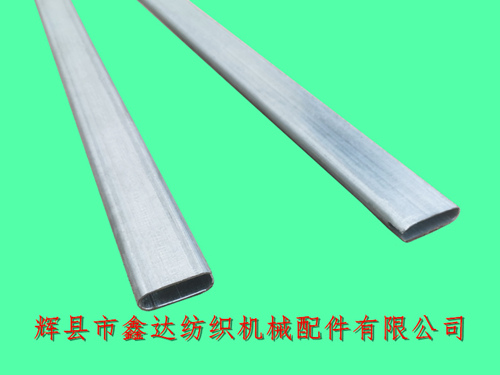

The above picture shows the synthetic tube used on a 1.1-meter 44 inch loom, with a thickness of 0.8mm. Corresponding plugs (280 synthetic heads) are installed at both ends, with 10 pieces per bundle and 30 pieces per package.
The above picture shows the upper and lower beams of the 1515K type -110 inch weaving machine, with a total length of 2.88 meters and a width of 4 centimeters for the flat tube. The 330 integrated frame plug (integrated head) used in conjunction has a total length of 45 centimeters.
If you need to purchase 28-110 inch weaving machine heald frame accessories such as seamless flat tubes, textile frame accessories,Integrated frame beam, weaving machine accessories, flat tubes and other hardware accessories, you can contact our sales manager Mr. Yang. Welcome to guide!
