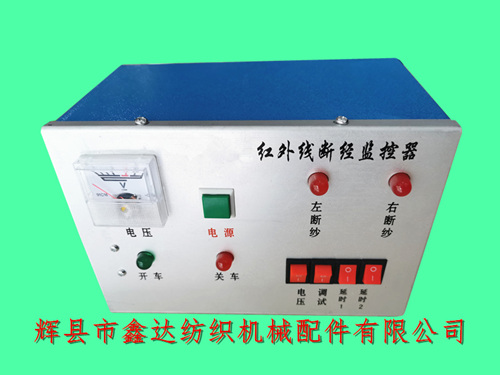

Huixian Xinda Textile Machinery Parts Co., Ltd. provides Yarn Breakage Monitor For Warping Machine,infrared yarn breakage self stop monitors and electrical boxes for warp knitting machine accessories. The panel of the infrared yarn breakage self stop monitor includes indicators such as voltmeter, power supply, left yarn breakage, right yarn breakage, start, stop, debugging, delay 1 and delay 2, as well as switches or meter pins. This warp knitting machine electrical box (monitor) mainly uses infrared real-time detection of yarn breakage in various paths of the warp knitting machine and provides a parking signal to trigger self stop. The following picture is a front view of the infrared broken warp monitor (control box) for textile electrical appliances - warping machine:
The green indicator light for driving and shutting down (stopping) is a red indicator light, and the four red 0-1 switches are used to adjust the sensitivity of infrared detection. Other specific installation details are described in the accompanying product manual. The infrared yarn breaking self stopping monitor and electrical box of the warping machine accessories have the characteristics of simple installation and use, durability, and low failure rate; The following is the back view of the infrared monitor (electrical box):
The blue nine pin socket is the signal interface for left and right yarn breakage. The two M6 diameter bolts are used to suspend the fixed base in the middle of the yarn frame of the warp knitting machine. The black knob is the fuse, and the light blue socket below it is the input for AC 220V voltage. The three wiring ports in the lower left corner are the interfaces for outputting relay signals.
The black wiring port is a common point, the red is normally closed, and the white is normally open. Specific wiring connections need to be made according to the needs of the warping machine itself. The above figure is a side top view of the infrared cut-off monitor of the whole warp machine, and the following figure is an arrangement diagram of the infrared sensors:
The infrared monitor of the warp knitting machine is not limited by the number of infrared sensors on the yarn frame. Generally, one monitor (electrical box) is used for one warp knitting machine device. If you need to purchase products such as infrared sensors, yarn breaking self stopping devices for warping machines, yarn breaking electrical boxes, infrared monitors, textile machine auxiliary appliances, etc., please contact Mr. Yang from our company for negotiation.
