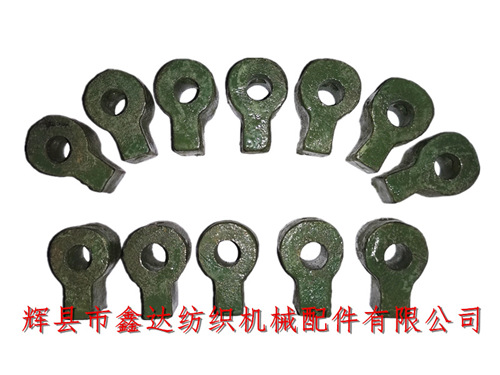

Huixian Xinda Textile machinery accessories provides textile accessories-Weaving Stop Hoop For Warp Stop Rod O14. The full name of O14 stop block for warp breaking stop of loom is: stop block for warp breaking stop rod, which is installed on the stop rod of loom O00-3 or 3600-2. The inner hole diameter of O14 is 8.3mm, the length is 29mm, the width is 16mm, and there is M6 support head screw hole on the upper part. Each loom uses one piece.
The above figure is a multi angle view of the stop bar hitting the stop block O14 of the shuttle loom. The small piece O14 of the loom is made of sand casting. The drilling and taper wire process requirements are strict. Its motion track is reciprocating in the slot of the L1 guide groove foot, which is the key accessory to trigger the stop of the loom after warp breaking.
The weight of o14 stop block of single shuttle textile accessory is 0.036kg, made of HT15-33, with 50 pieces in each string. Correct the stop rod hoop O14: the bending shaft is in the back center, and the connecting bolt O23 is on the stop rod O21. Correct the front and rear positions of the stop rod hoop in the notch of the guide groove foot L, and its front is roughly flat with the guide groove foot. Adjust the position of the stop rod in the groove of V-shaped rod I15 to make the upper and lower positions of the stop rod hoop (stop block) moderate.
Turn the shaft to the left and right of the front center, or push the V-shaped rod backward, pull the stop lever to check whether it is flexible up and down. If it is not flexible, disconnect the connecting bolt and pull O18 for adjustment. At this time, pay attention to the up, down, left and right positions in the hanging feet of the stop block. For detailed textile accessories, please contact Mr. Yang of our company for the price, parameters and processing technology of O14 stop block of Henan loom.
