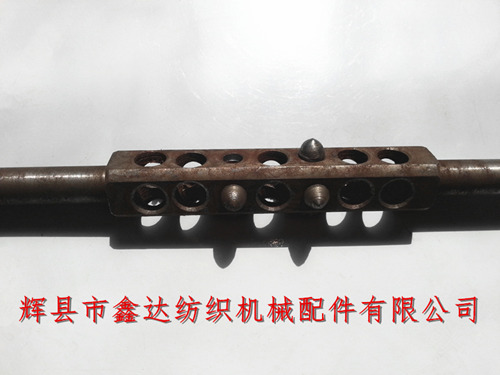

The 214m automatic checker is a universal multi shuttle accessory, 214 loom,which can be used in 1511, 1515 and other types of automatic checker devices. It is located in the control part of multi shuttle box shuttle changing. The product is composed of B-17 (a) cube and B-17 (b) peanut head. The total length of the 1515 checker accessory b00-1 is 332mm, the diameter of the two shafts is 15mm, the length of the optical shaft is 140mm, and the length of the middle square is 128mm.
The number of peanut heads installed on each square is determined by the number of holes of multi shuttle steel plate. Peanut heads are installed on four sides (the bottom diameter is 8mm, and the height is 14mm). The shape of 1511 small steel plate is as follows:
The connection of steel plate is like the hinge of our family's doors and windows, which is connected by steel plate pin. The diameter of the big hole is 13mm, and the diameter of the small hole is 11.3mm.
214M Each loom is equipped with one set of automatic Plaid machine accessories, which is connected with the foreign folding angle b-20. The multi shuttle accessories, plaid machine control accessories, such as multi-color weaving accessories, plaid machine, 214 accessories, and foreign accessories are provided by Huixian Xinda Textile Machinery Accessories Co., Ltd. We adhere to the "integrity management, the pursuit of specialization, professional achievement" business philosophy of survival wholeheartedly welcome customers to visit and guide.
