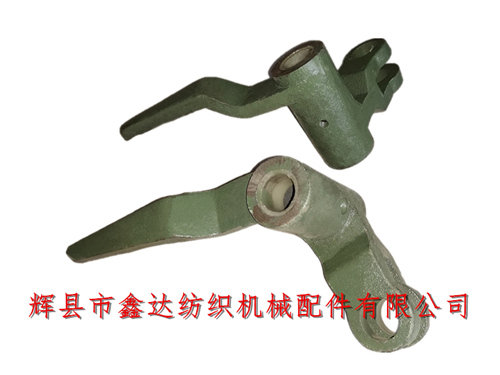

Huixian Xinda Textile machinery accessories provides GA615 old loom accessories with shuttle. The external let off device SJ52 swing rod. The SJ-P-III external let off device is installed on GA615 shuttle loom. The center distance between the two holes is 85mm. The overall dimensions: the total length of the swing rod is 22cm, the total length of the fork is 12.85cm, the diameter of the two inner holes of the ear is 24.5mm, the spacing is 17mm, the diameter of the intermediate shaft hole is 30mm, and two nylon sleeves with an inner diameter of 24mm are embedded.
The above figure is the side view of SJ52 swing rod, the lower swing rod is bent, and the length of the intermediate shaft hole (equipped with white nylon sleeve) is 10cm. GA615 loom accessories - SJ52 swing rod is divided into left hand and right hand. The weight of a single swing rod is 1.6kg, and one is used for each loom.
SJ-52 swing rod is a textile accessory, which is a part of the old shuttle loom. Loom External Let-off,SJ52 Swing Rod,Shuttle Loom Parts, It is installed on the outside of the wall panel of the loom and is suitable for all models under the doors of 1515 and GA615. The casting material of the accessory is pig iron HT15-33 and the bushing material is nylon 1010.
SJ series external let off device (mechanism) includes more than 100 products, including SJ54 reciprocating rod supporting foot, SJ56 tension tension spring, SJ-64 reciprocating rod mandrel, SJ-50 cam motion shaft, SJ-49 let off foot, SJ-51 pin and other common parts of GA615 loom. Vulnerable parts include SJ-02 tension tension spring plate, SJ-21 spine support, SJ-27 buffer rod, SJ-28 buffer foot, SJ-29 reciprocating rod joint, SJ-41 clutch spring, etc.
GA615 loom accessories are generally used on double beam 56 inch and 75 inch looms. The tread plate opening device is used to lift the heald frame. Twill looms can also be equipped with external let off device. If you need to purchase SJ external let off, old loom accessories, shuttle loom parts and other products, please contact Mr. Yang of our company!
