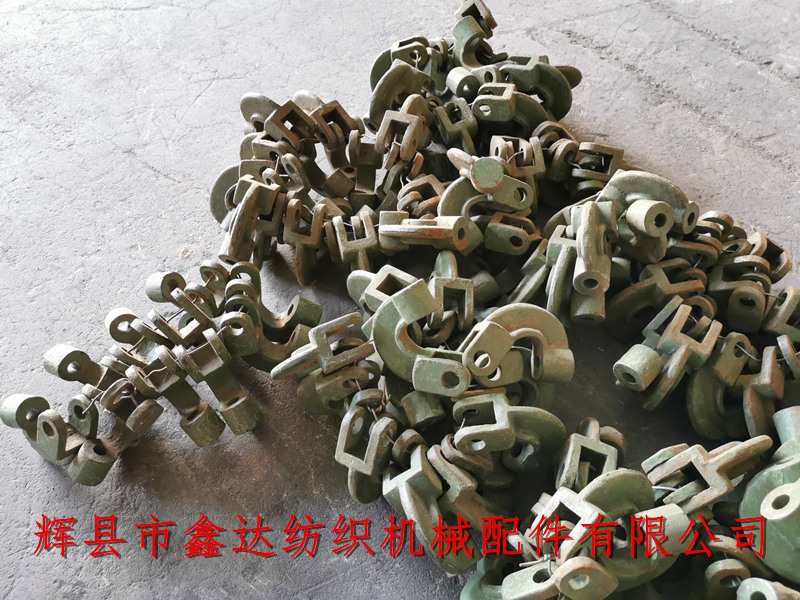

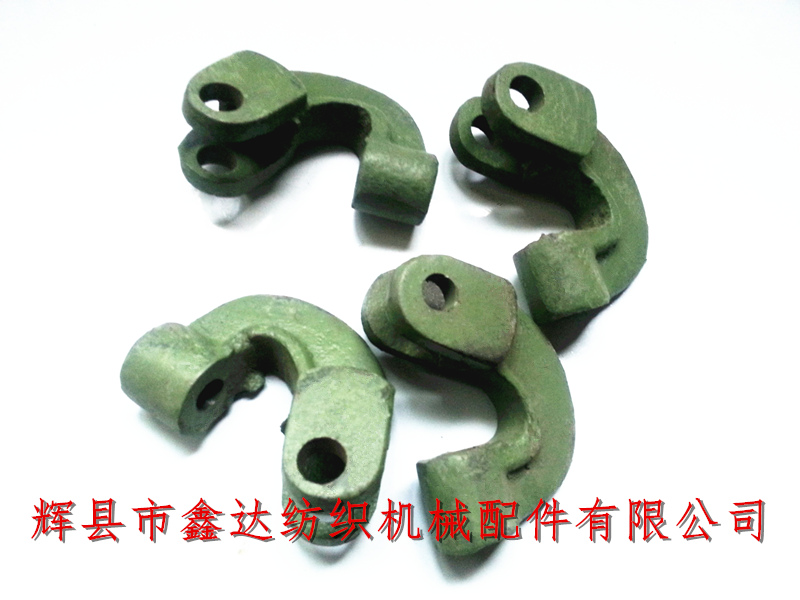

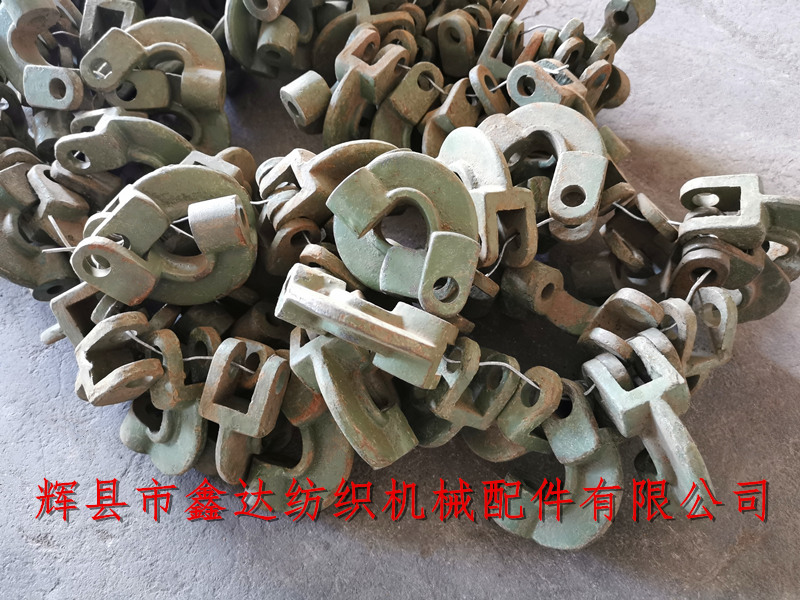

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides Dobby Shuttle Loom T23/5214 Tie Rod Joint, T23 / 5214 pull head supporting feet. The aperture of T23 fixed joint core (T24) of textile machine accessories is 12mm. The difference between T23 and 5215 is the inner hole connecting the adjusting screw. The inner hole of T23 is 9mm, and the inner hole of 5214 is 11mm. Textile cast iron dobby T23 / 5214 uses 4 pieces for each loom.

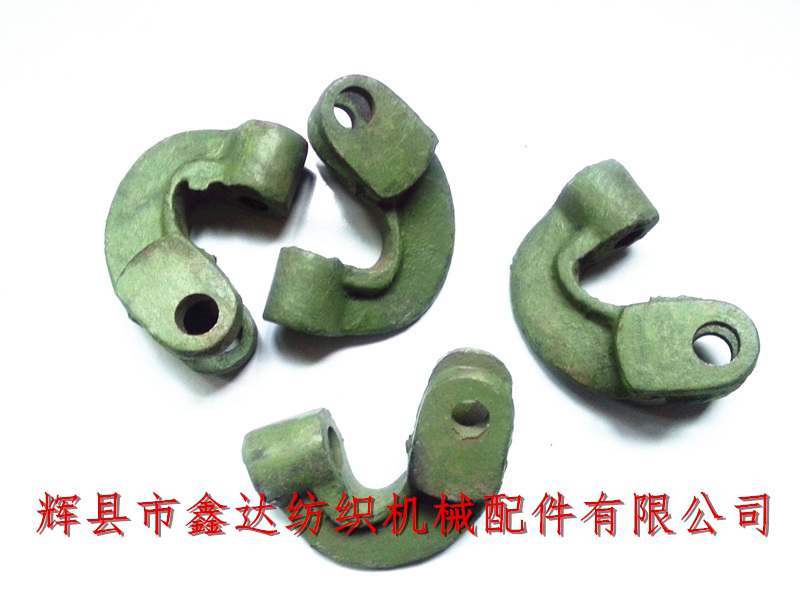

The multi arm puller of textile machine (as shown in the above figure / T23) is connected with T-shaped lever T19 and double arm lever T21. 1515 or GA615 multi arm loom is connected with 5100-2 adjusting screw, 5120 double arm lever and 5122T lever. The puller supporting foot plays a connecting role in the multi arm device!
The single weight of textile machinery parts T23 and shuttle textile accessories 5214 is about 0.22kg. The number of 1515 multi arm puller accessories has decreased sharply due to the use of GT221 multi arm faucet in the domestic production of new looms.
The opening of the dobby loom is divided into the form of compound action, double draw hook, single drum and crank rocker transmission. The 1515 dobby loom can be divided into left-hand and right-hand looms. The difference is that when it is installed, the left-hand dobby loom is installed on the upper right of the left-hand loom; The right hand multi arm machine is installed on the upper left side of the right-hand loom.
If textile enterprises and manufacturers need to purchase or customize (dobby loom accessories) T23 / 5214 pull head and support feet, please contact Mr. Yang of our company. Our company can also provide specific price quotation, detailed dimensions and parameters.
