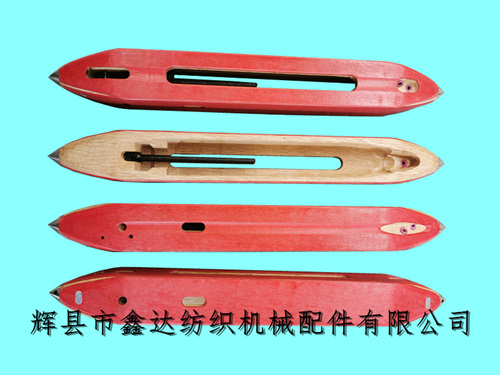

Huixian city Xinda Textile Accessories has long provided three-bread steel paper wooden shuttles, supporting the 430X50X47mm wooden shuttle manufacturers to customize the loom shuttles. The total length of this Thai shuttle is 430mm, the outer width of the shuttle bottom is 50mm, the height is 47mm, the inner cavity width of the shuttle body is 36mm, the inner cavity length is 297.5mm, and the inner cavity depth is 43mm. The front of the red steel paper wooden shuttle is designed with three porcelain eyes for weft insertion.
The shuttle tip of the loom shuttle adopts screw design, the two ends of the back side of the shuttle body are blocked by sealant (white position), and there are two photoelectric weft detection grooves (relatively short) on both sides of the shuttle body. The diameter of the weft groove for installing the weft tube (tube) is 21mm, and the diameter of the rear part (where the big end of the weft tube is installed) is 28.5 mm.Shuttle Manufacturers,Customize Shuttle,Wooden Shuttle.
Cyclobalanopsis wood selected by shuttle manufacturers is slightly less dense than compressed wood, and also belongs to hard wood, which has the characteristics of clear surface texture and good impact resistance. The included angle between the two sides of the shuttle body and the bottom of the shuttle is 90 degrees (right angle), and the dimensions of the weft detecting groove are: 23mm in length and 9mm in internal height. The packing box of textile wood fittings -430 red paper wooden shuttles (Thai shuttles) is carton, with 30 pieces in each box. Minimum order quantity is required.
The shuttle tip of Thai loom shuttle (length 430mm* width 50mm* height 47mm) is detachable, and the shuttle head is fat, belonging to the big-headed shuttle, and the weight of a single shuttle is about 497g. If you need to purchase or customize Thai loom shuttles, red steel paper wooden shuttles, loom heavy shuttles and other products, please contact Mr. Yang of Xinda Textile Accessories for details! We undertake all kinds of textile shuttle customization business and special wood products processing, welcome new and old customers at home and abroad to consult and cooperate!
