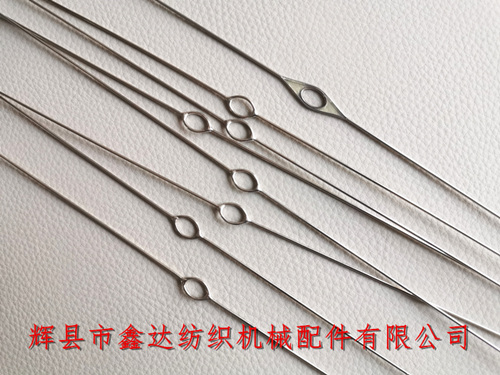

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 380 J Type Stainless Steel Wire Heald For Loom, 380 steel wire heald/J-type stainless steel heald/shuttleless brown wire. The 380 heald is made of round steel wire with a diameter of 1.2mm, made of carbon steel, and treated with nickel plating on the surface, presenting a silver white color; The size of the middle hole of stainless steel wire: inner length 10mm, inner width 6mm. The inner width of J-shaped wire ear is 3mm, inner length 20mm, and the inner length of the hook is 7mm. J-shaped steel wire wire wire, also known as hook wire, is commonly used on domestic large rapier machines.
The inner length of the entire 380 gauge wire is 380mm, with an eccentric gauge eye (displacement of 5mm), a length of 185mm on one side and 195mm on the other side; The 380 mesh wire in the middle position of the picture is a sample provided by the customer, which is made by stamping a stainless steel round wire. After cutting in the middle, a sliding wire ring with an inner length of 10mm and an inner width of 6mm is installed, and the remaining part is filled with acrylic (see picture above).
The 380 wire heald we provide is made by brazing and splicing, with two brazing points at the position of the middle wire hole. The wire ears at both ends are bent using a tooling mold, which can replace the use of the customer's original sample.
The packaging of 380 stainless steel wire is in transparent bags, with 200 pieces per pack and a minimum order quantity of 1000 pieces. The delivery time is 35-45 days; If you need to purchase stainless steel nickel plated composite wire, 380J type steel wire composite equipment, shuttleless weaving machine brown wire, J-type eccentric composite wire and other products, please contact Manager Yang of our company for consultation.
