Huixian Xinda Textile Machinery Accessories Co., Ltd. provides 1515 loom accessories 3909x3910 Temple Seat (side support box) and extension seat. The side support seat 3909 on the shuttle changing side of the loom and the Temple Seat cover 3910 form a complete set of side support box (with tail). The length, width and height of the textile side support base (with alloy block) are 95mm, 74mm and 24mm; The side brace cover is 156mm long, 96mm wide and 35mm thick.

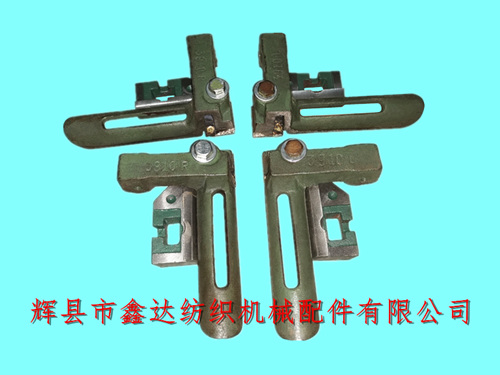

In the figure above, the shear hammer groove of 3909*3910 side support extension sub base is added with alloy (yellow) to enhance the wear resistance of the side support base. The width of the shear hammer groove is 8mm and the inner height is 27mm; The side support box 3909x3910 is divided into left hand L and right hand R. each loom uses one set, that is, the left hand side support box for the left mobile phone.
The 1515 loom can use 10 ring, 13 ring and 14 ring copper stab shafts. All of them use this type of side support box (extension seat). The special extension stab shaft needs to use the matching 15 ring side support cover. L70t-shaped screws are installed at the groove of the side support base 3909 and fixed on the extension rod.
The abrasion depth of the groove of the 1515 side support box shall not exceed 0.8mm. When the crankshaft is at the front dead center, the distance between it and the reed shall be 1.6mm, so as not to touch the reed (check with a fixed gauge). The weight of a single set of edge support boxes (3909x3910 Temple Seat And Extension Seat) is 0.8kg, and the main material is gray pig iron HT15-33. There are 10 in each string (5 on the left and 5 on the right).
If the textile companies and textile manufacturers need to purchase 1515 side brace boxes, 56 inch extension seats, 72" For side support seat, 75" loom accessories, 63" side support cover and other 1515 loom accessories, please contact Mr. Yang of Xinda Textile accessories for details! Our company provides shuttle loom accessories and shuttle textile equipment products of models 1511, 1515, G1515, 1515k, GA615, etc. welcome to consult and discuss cooperation~
