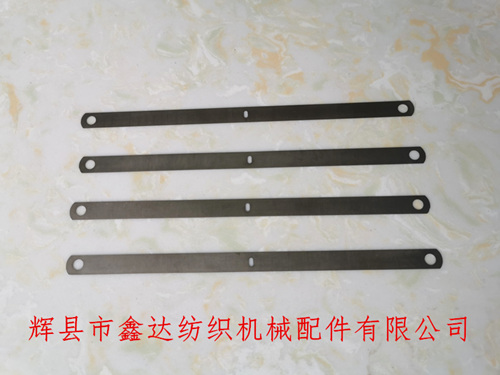

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 173*9*0.1 industrial woven mesh (nickel plated) suitable for steel wire and copper wire weaving equipment. Industrial Flat Heald,Flat Steel Heald,Textile Equipment,There are various types and specifications of industrial mesh, such as round head 170*9 and 180*11, neat head 185*7*0.12, single eye 205*12*0.1, five eye 200*10*0.12, four eye 280*14*0.8, etc. The external dimensions of this nickel plated industrial integrated sheet are: total length of 173mm, diameter of circular holes at both ends of 5mm, inner length of 166.7mm, inner width of the middle integrated hole of 3.8mm, inner height of 2mm, and thickness of 0.1mm.
The surface of the 173 industrial composite sheet has been treated with nickel plating using chemical nickel plating. The packaging of the 173 * 9 * 0.1 woven mesh composite sheet is in cardboard boxes, with 4500 single eye composite sheets (each with a thickness of 0.1mm) per box and 7 boxes per box.
The Chinese product name of Industrial Flat Heald is: 綜片, suitable for weaving machines with stainless steel wire or copper wire as raw materials. The thickness range of this industrial flat Heald is 0.06mm-0.3mm.
The weight of a composite sheet with a thickness of 0.1mm is approximately 1.15 grams (other thickness specifications can be converted to weight based on this). If you need to purchase 173mm industrial composite sheets, nickel plated steel sheet composite sheets and other products, please contact Mr. Yang from our company to discuss cooperation matters.
