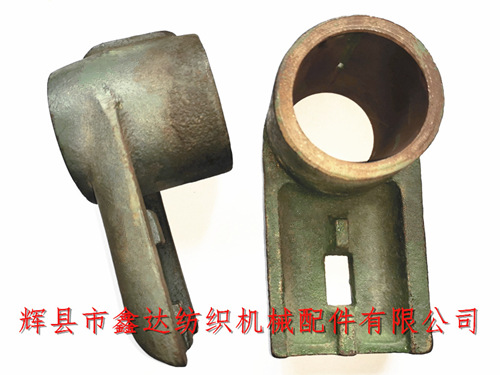

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides the old-fashioned weaving textile accessories - E5 pedal shaft middle bracket. The E5 middle support foot is installed on the power loom treadle shaft. The overall length is 15cm, the width is 76mm, the inner hole diameter is 52mm, and the hole length is 72mm. When it is upright, there is an oil filling groove on the upper part. The material of the loom E5 tread shaft support foot is HT15-33, which is used with E6 sleeve and E7 pad iron pad.
For 1515 and GA615 wide looms, two E5 (pedal shaft middle bracket) are used for each loom, and only one E5 support leg is used for 1511 narrow loom. The clearance between E6 and E5 of shaft sleeve is 0.4mm in large repair and 0.6mm in minor repair.
The weight of a single fabric accessory E5 is about 1.2kg. The three-axis assembly related to the supporting foot of E5 treadle shaft is the center of the loom. The installation quality of each axis of loom should start from the treadle shaft. Its installation quality is directly related to the flat mounting of other shafts. Once the treadle shaft is installed, the position of wall panel and frame will be fixed, and the rocker shaft, crank shaft and let off shaft be set Installation foundation.
Due to the fact that the shaft needs to be removed when the textile accessories E5 and E6 are replaced, some cotton mills will not replace them after they are damaged. In this case, the shaft will be damaged after a long time of operation of the weaving machine (the middle part of the shaft is the direct part of the heald frame lifting, without the support of the support foot, the shaft is suspended for a long time under stress).
