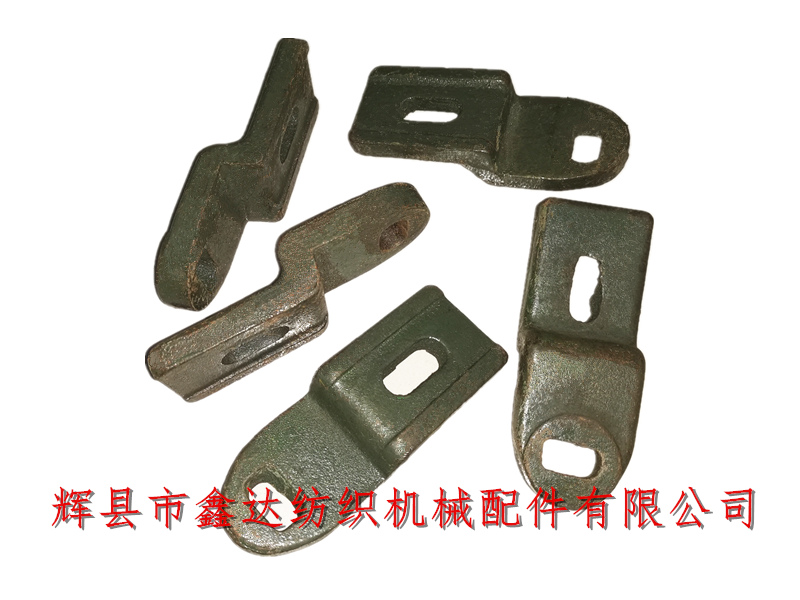

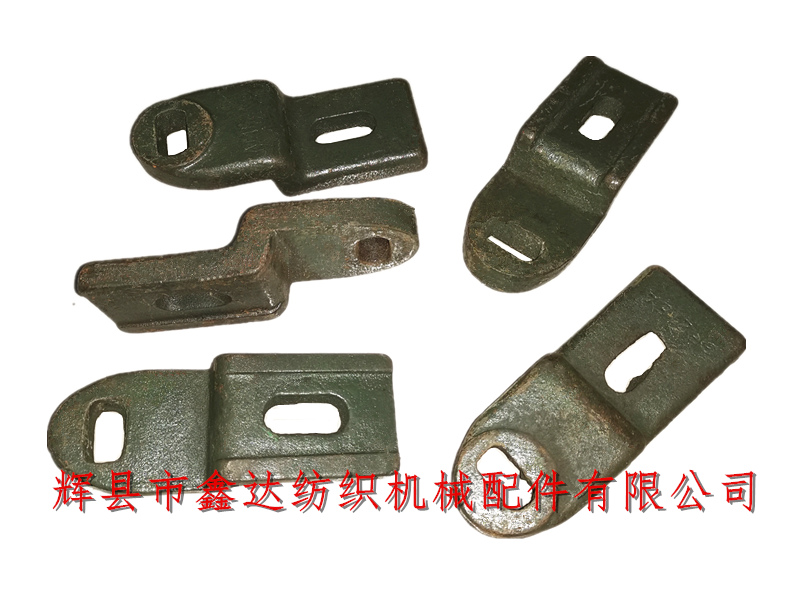

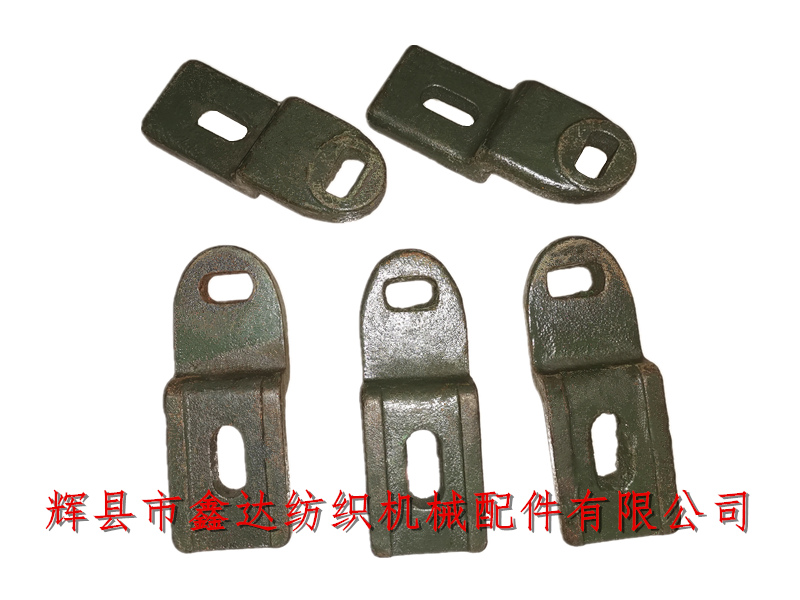

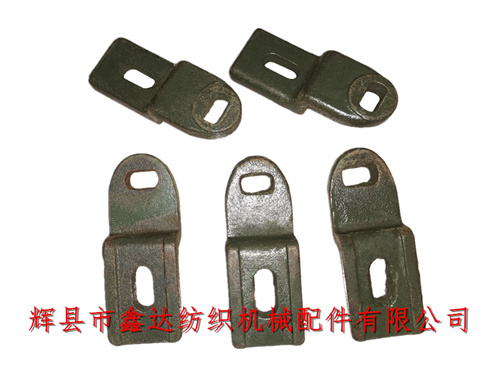

F218A loom accessory brake rod supporting foot (general type) is shown in the 1976 loom preservation atlas. The accessory is applicable to shuttle loom equipment of models 1511, GA615 and 1515. The shape parameters of textile accessory F218 are: total length 136 mm, width 52.2 mm and upper thickness 15 mm. It is mainly used to fix the brake rod F217 or 4104 of the loom, which is connected with F219 mandrel.
The above figure is the plan, side and back view of F218a brake rod supporting foot. The rectangular hole connected with mandrel F219 at the upper part is 25mm long and 13mm wide; The parameters of the chute hole fixed on the wallboard at the lower part: the inner length is 31 mm and the width is 13 mm.
The starting parts and braking parts of the loom include a variety of products. During the installation process, it is necessary to check the horizontal condition and the tolerance fit with the dual parts and connectors. F218 brake rod supporting foot is not damaged for a long time, which is generally damaged in the process of moving and loading, so the use amount is small. The supporting foot is not divided into left hand and right hand, and can be used for left-hand loom and right-hand loom.
The material of F218A loom brake rod supporting foot is gray iron (pig iron HT15-33), the total thickness of the side is 3cm, the thickness of the main body is 14mm, and its single weight is about 0.52kg. Each loom uses one F218A loom accessory brake rod supporting foot (general type), with 10 in each string. Xinda Textile accessories has been engaged in the sales of shuttle textile machine accessories for many years, with complete types of accessories and stable cooperative manufacturers (customized textile equipment and special loom equipment). Manager Yang of the company wholeheartedly welcomes new and old customers at home and abroad to visit and guide.
