Pictures Of Loom (Projectile Loom, Shuttle Loom, Rapier Loom)

This article provides detailed pictures of projectile looms, shuttle looms and rapier Loom, including pictures of manual wood looms. Due to the wide range of models and types of Loom, we focus on introducing representative pictures of various Loom (including details), so as to facilitate new customers to understand and analyze weaving mechanisms and principles.

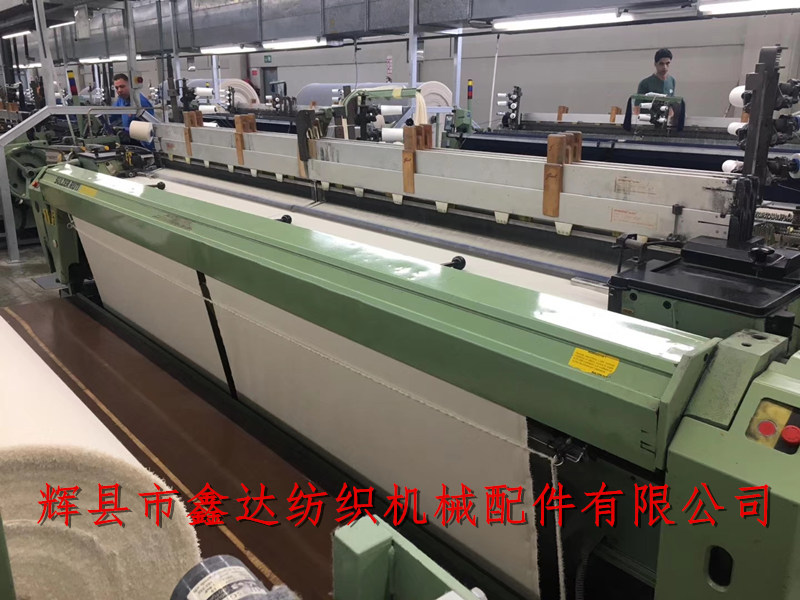

Sulzer P7100 projectile loom, with a door width of 360cm, and a treadle Loom.

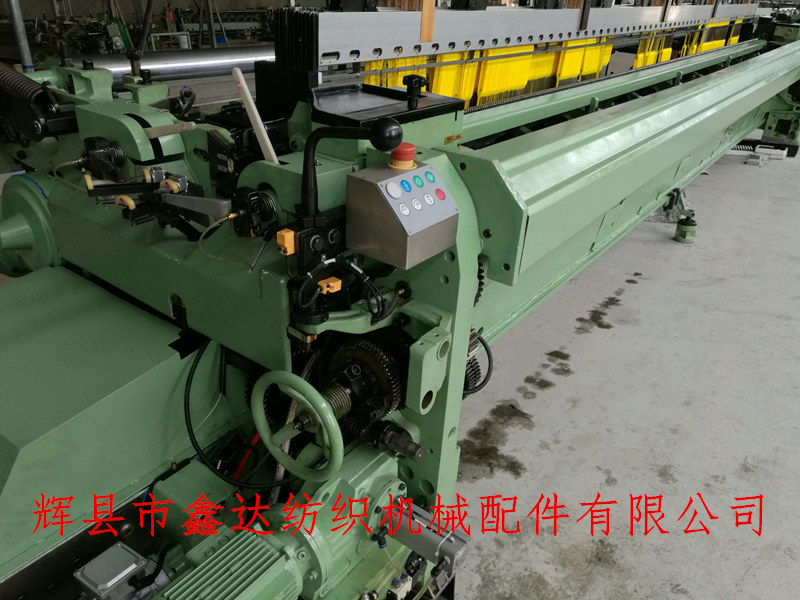

540cm wide projectile loom.

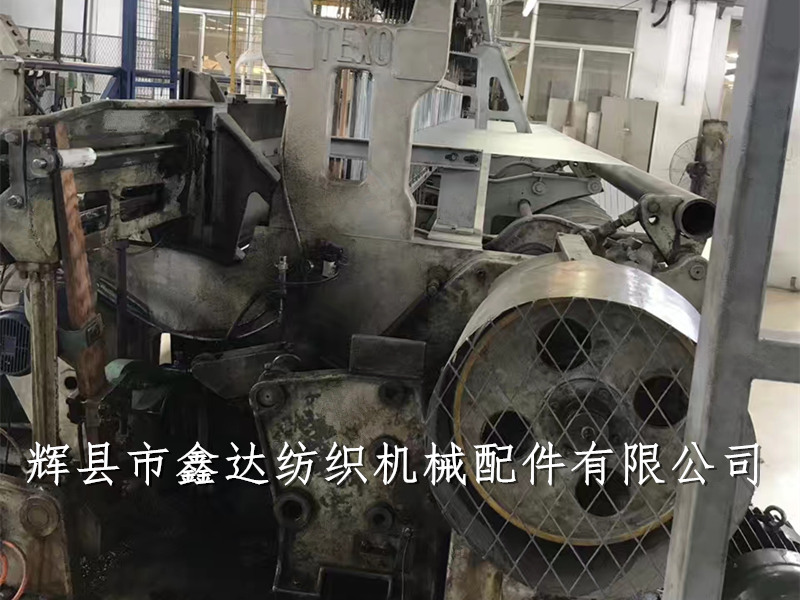

Construction details of heavy duty shuttle looms.

Detail of side view of heavy multi shuttle Loom

Side view of Hanrong Loom (modified)

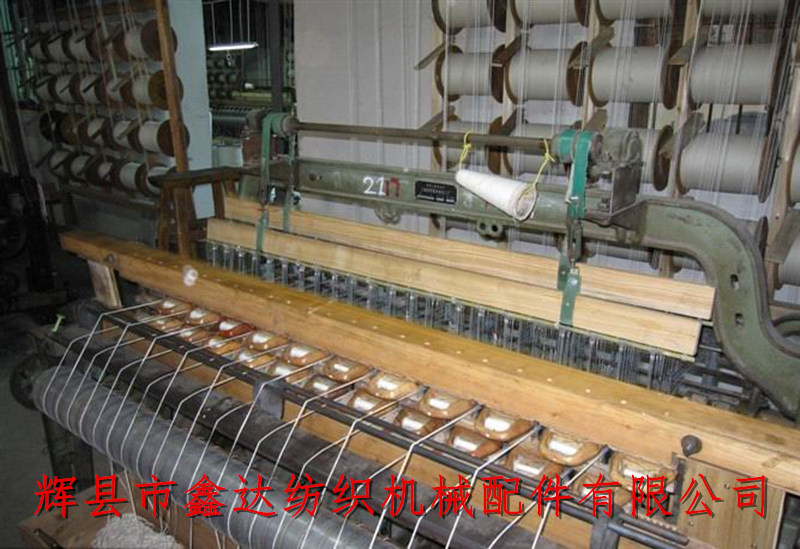

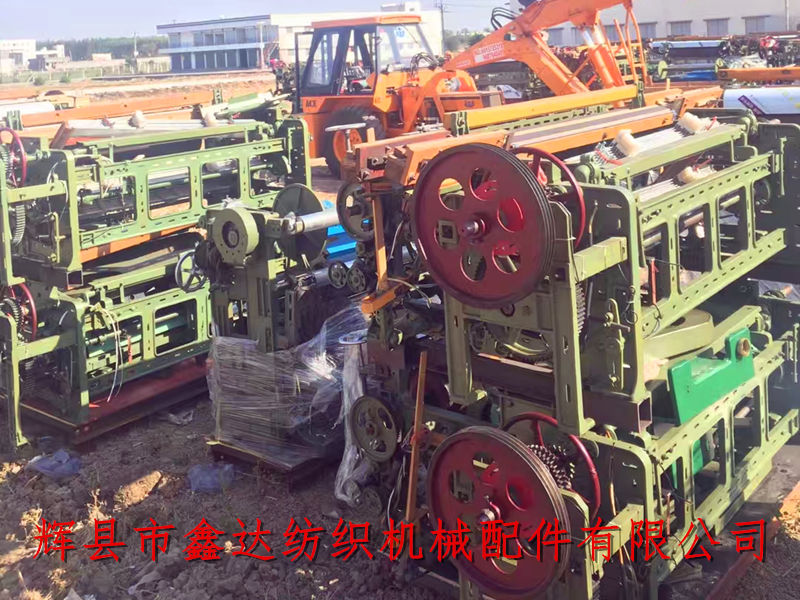

Strap Loom (with shuttle)

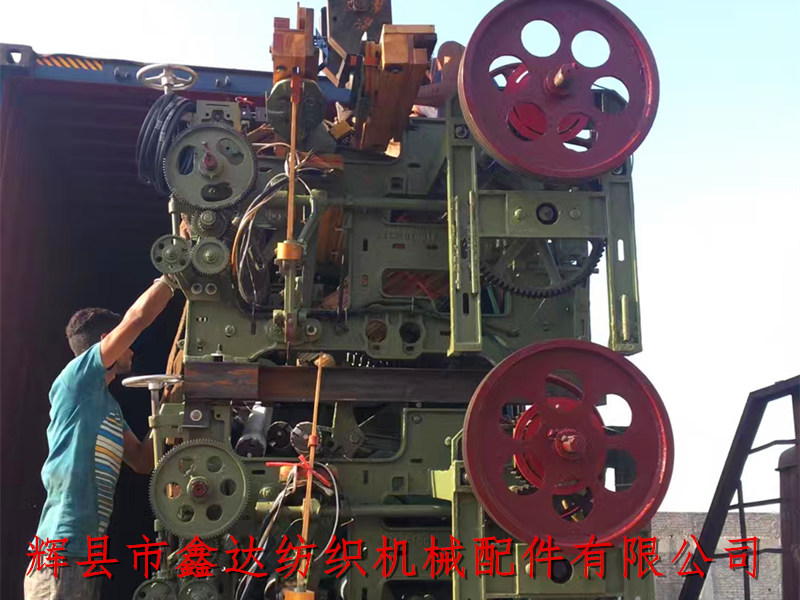

Side view of foreign belt drawing Loom (shuttle rod type)

Horizontal manual Loom (Syracap fabric)

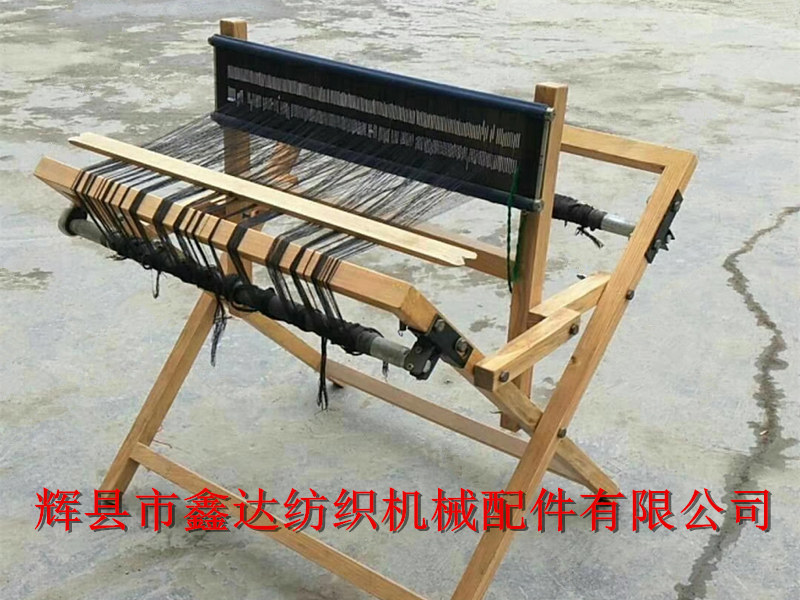

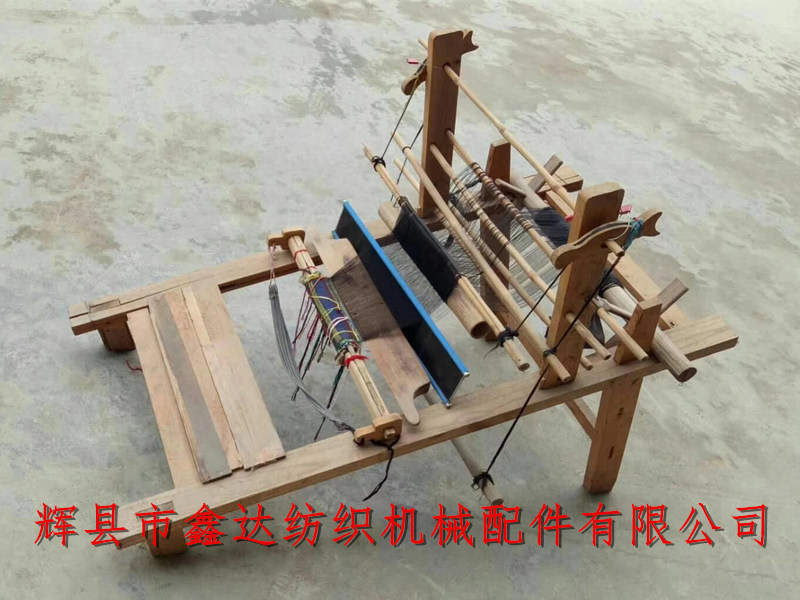

Folding simple manual Loom (Xilankapu)

Second hand 1515-75 Loom (automatic shuttle changing type)

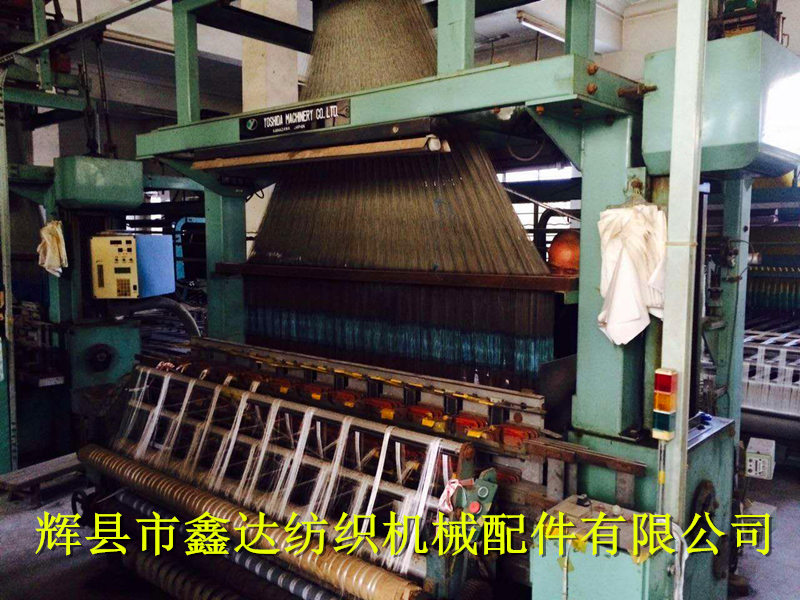

Three layer shuttle box weaving machine (with jacquard faucet type)

1511-56 inch single beam Loom refitted into double-layer loom (flat shuttle)

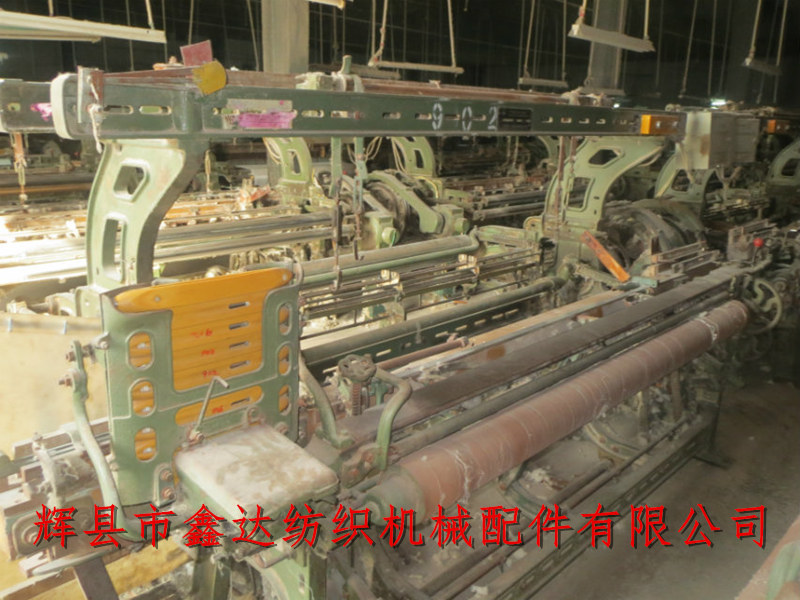

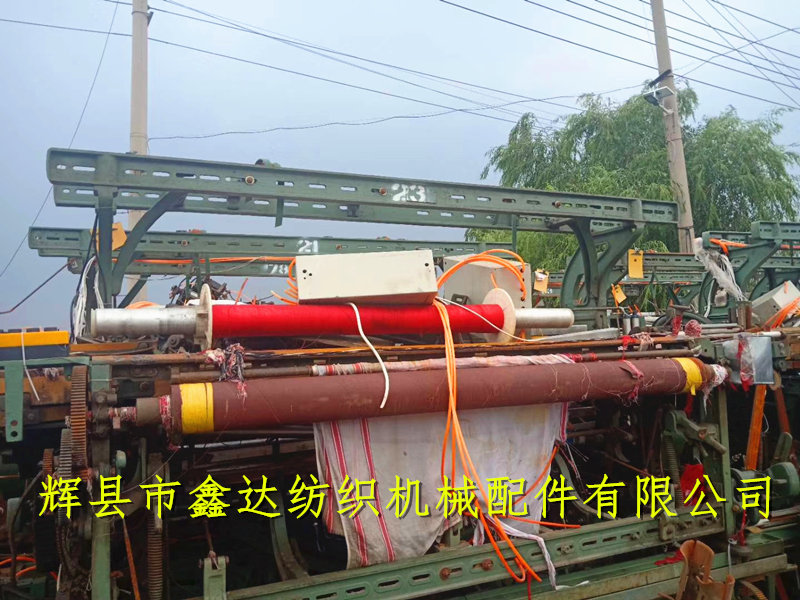

GA615 75 inch full-automatic Loom with double crossbeams and three automatic devices.

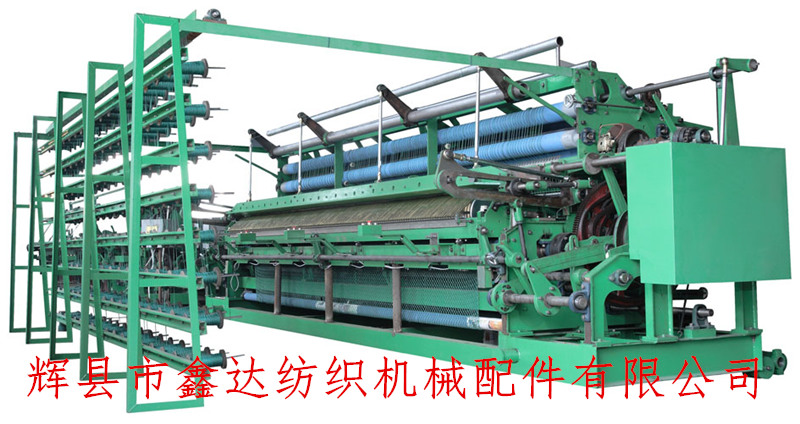

Large fishing net Loom equipment

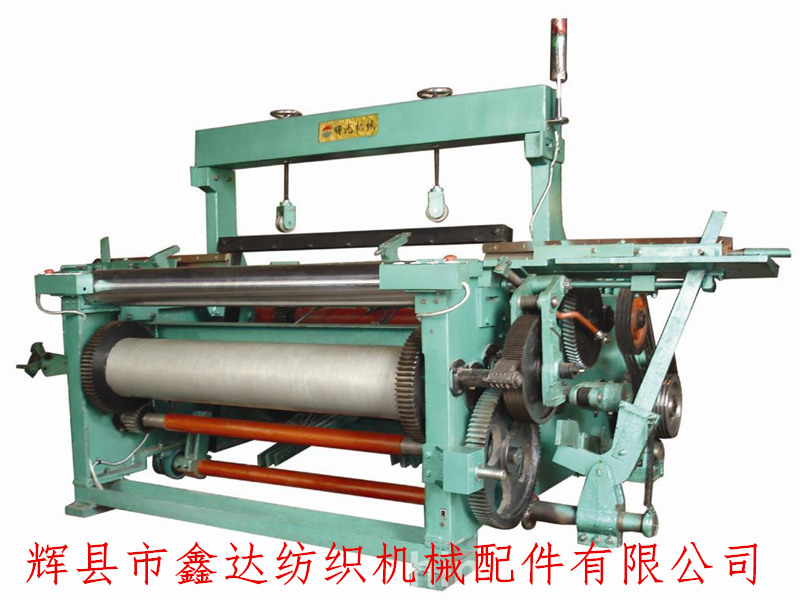

Heavy duty metal wire mesh loom (shuttle type)

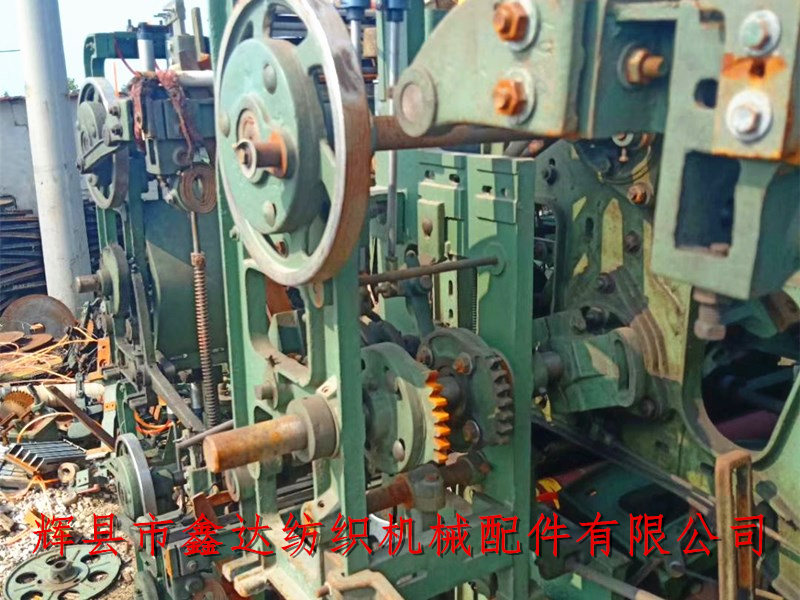

Side detail drawing of multi shuttle device of Loom

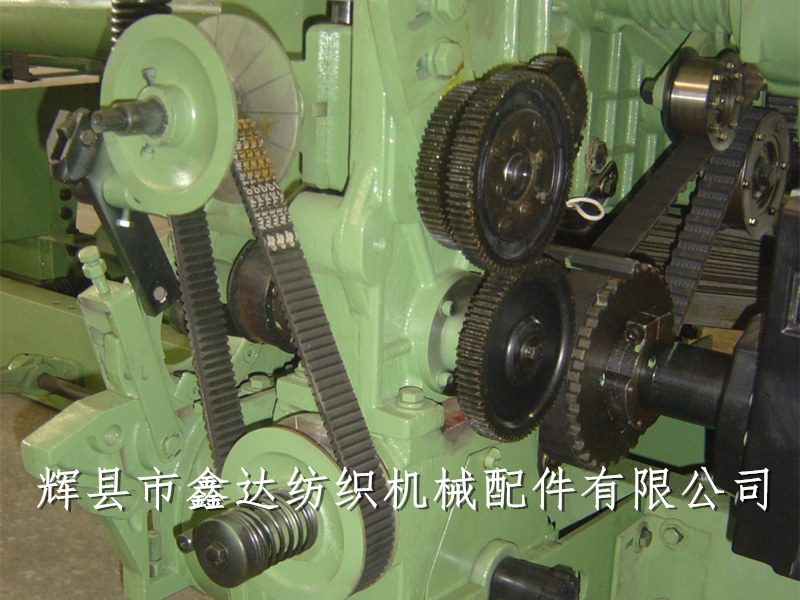

Side transmission component diagram of high-speed rapier machine

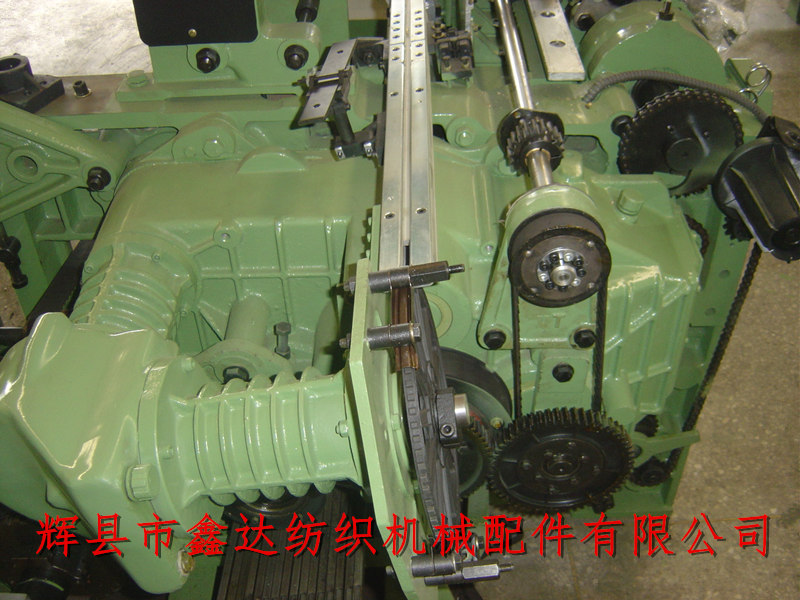

Drawing of the weft insertion device of the large rapier machine

The definitions of gripper, shuttle and rapier are generally set according to the different weft insertion carriers of the Loom. Knowing their weft insertion carriers and the weft insertion methods (single weft operation is burr, and circular weft operation is smooth edged fabric) can deepen the understanding of the weaving mechanism. Welcome to exchange and learn.
